T36 Miniature Split Core Current Transformer T36 Miniature Split Core Current Transformer T36 Miniature Split Core Current Transformer T36 Miniature Split Core Current Transformer Dimensions

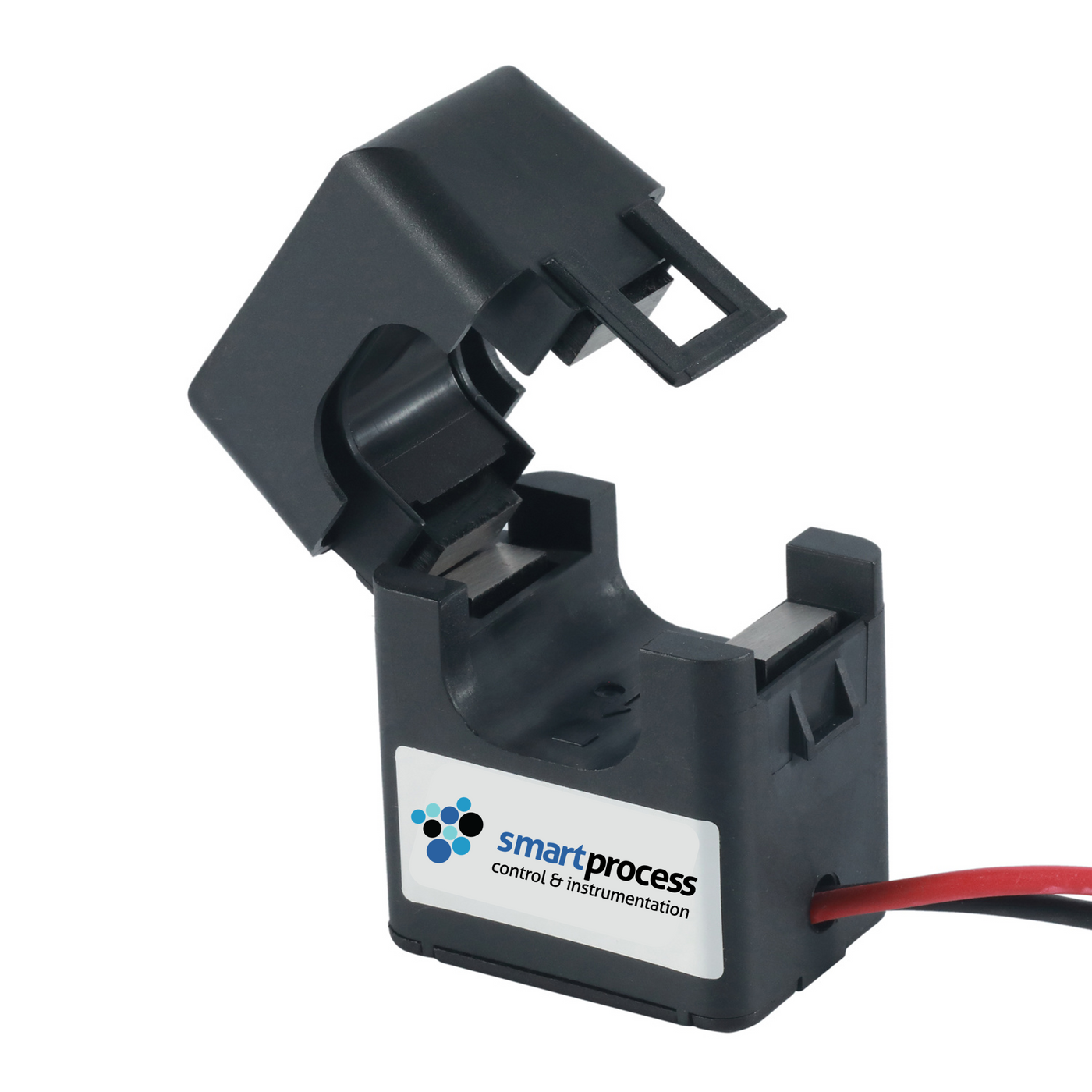

T36 Miniature Split Core Current Transformer

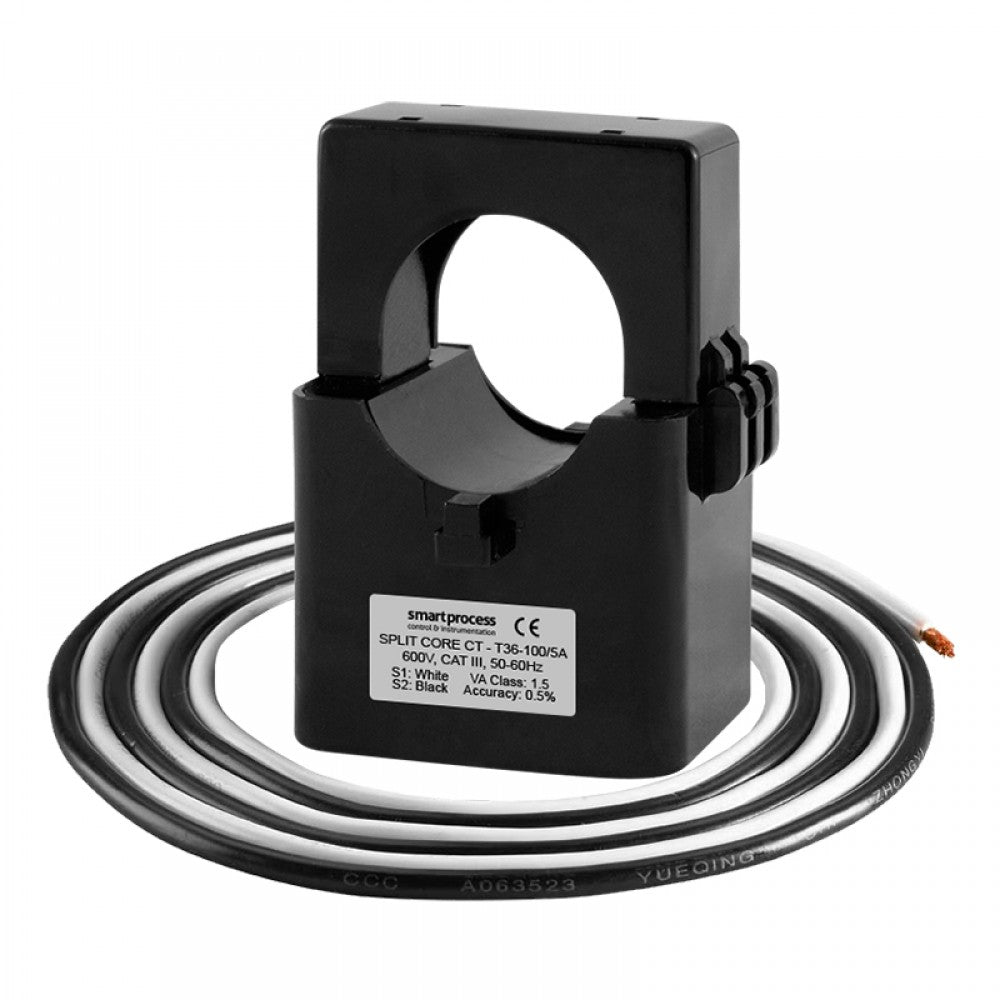

T36 Miniature Split Core Current Transformer

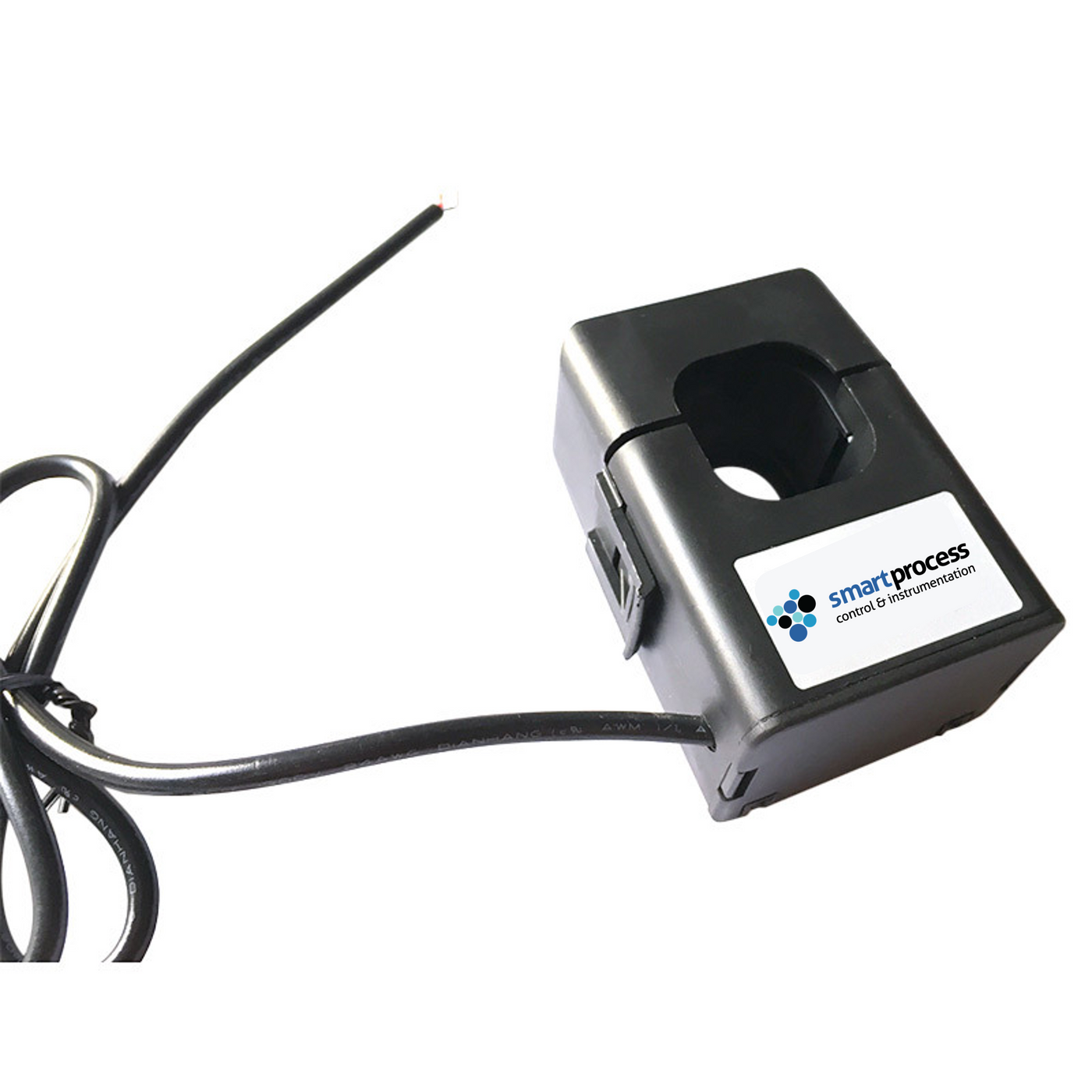

T36 Miniature Split Core Current Transformer

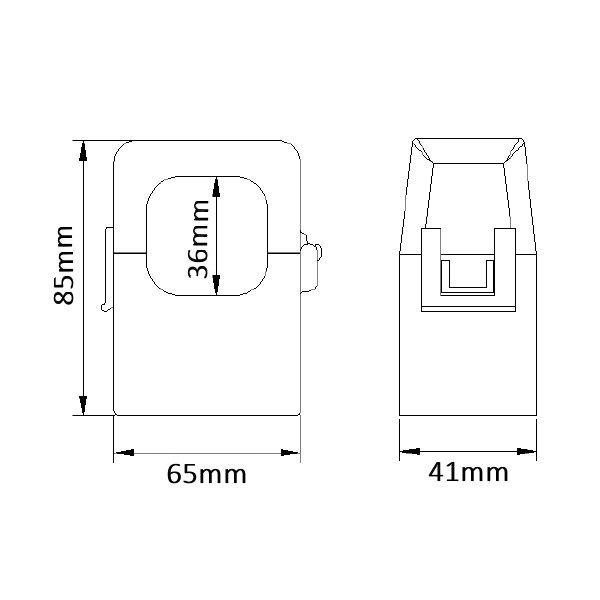

T36 Miniature Split Core Current Transformer Dimensions

Eastron

T36 Miniature Split Core Current Transformer (300-600A) /5A Secondary

SKU: T36-300A/5A

£34

Excluding VAT. Shipping calculated at checkout.

Product Features:

  • Split Core
  • Single Phase
  • 36mm Aperture
  • 300-600A Primary Current
  • 5A Secondary Current
  • 1m Fly Lead (2.5mm Wire)
  • Accuracy Class 1

The T36 Range of Split Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors. You can use individual T36 CTs for Single Phase applications, you can also use 3pcs of these current transformers for Three Phase applications. The Aperture on this model accommodates 36mm² Cable. The T36 is ideal for applications such as Distribution systems, Generator sets, Control Panels, and Switchgears.

Click Here For Product Datasheet
