Overview
What it is and where it earns its place
Products Features:

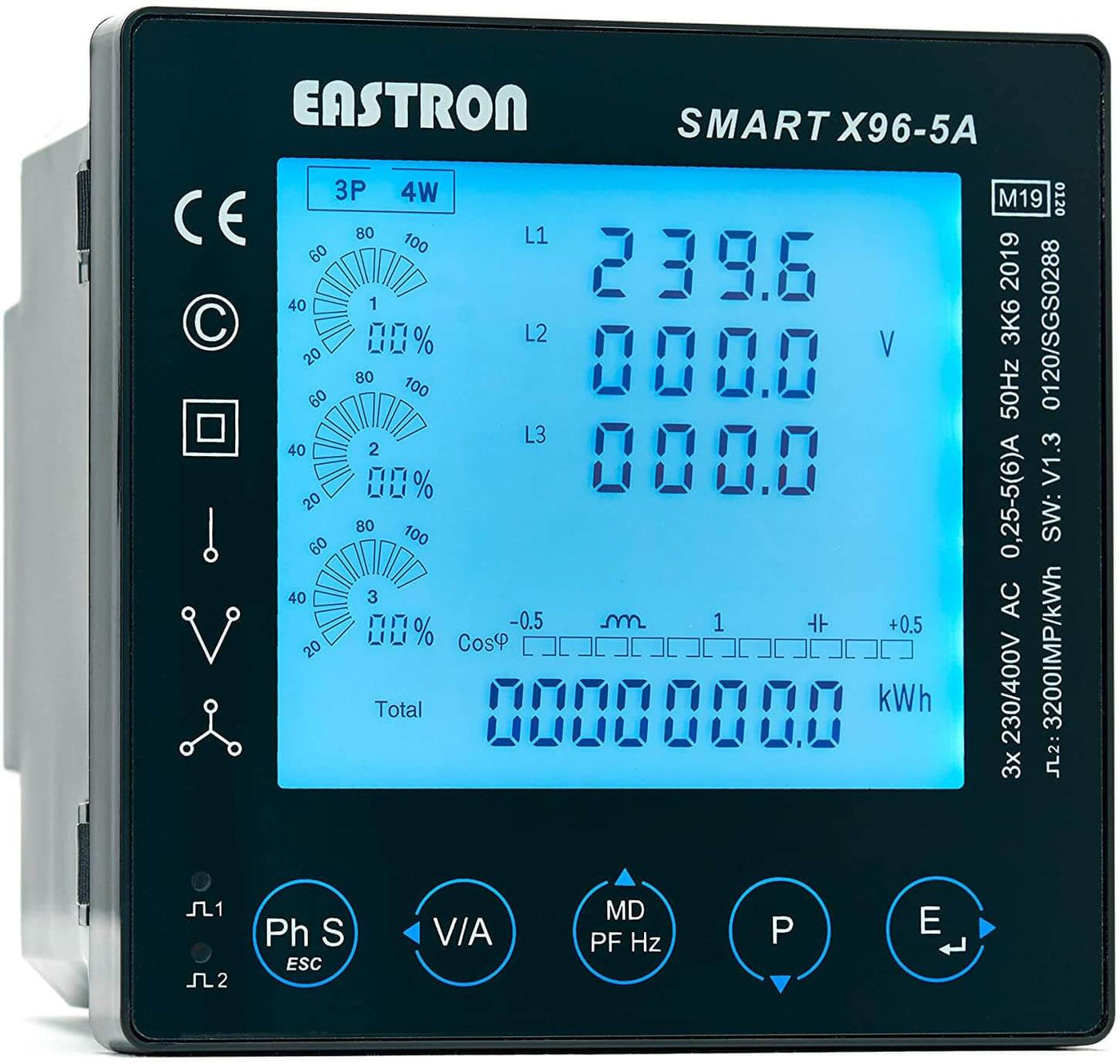

Meter Information:
- Single Phase (1P2W) MID Certified
- Three Phase (3P3W) MID Certified
- Three Phase (3P4W) MID Certified
- Class 0.5s Accuracy
- Phase Sequence Detection
- Individual Harmonics upto 63rd
- /0.1A CT Operated
- RS485 Modbus RTU
- Dual Pulse Outputs

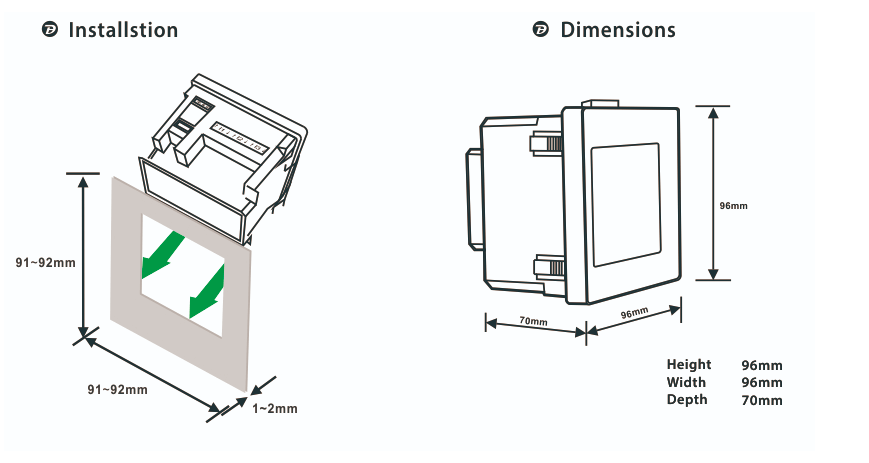

- 96mm² Panel Mounted (92mm² Cut Out)
- Digital Backlit Display
- Touch Screen Buttons

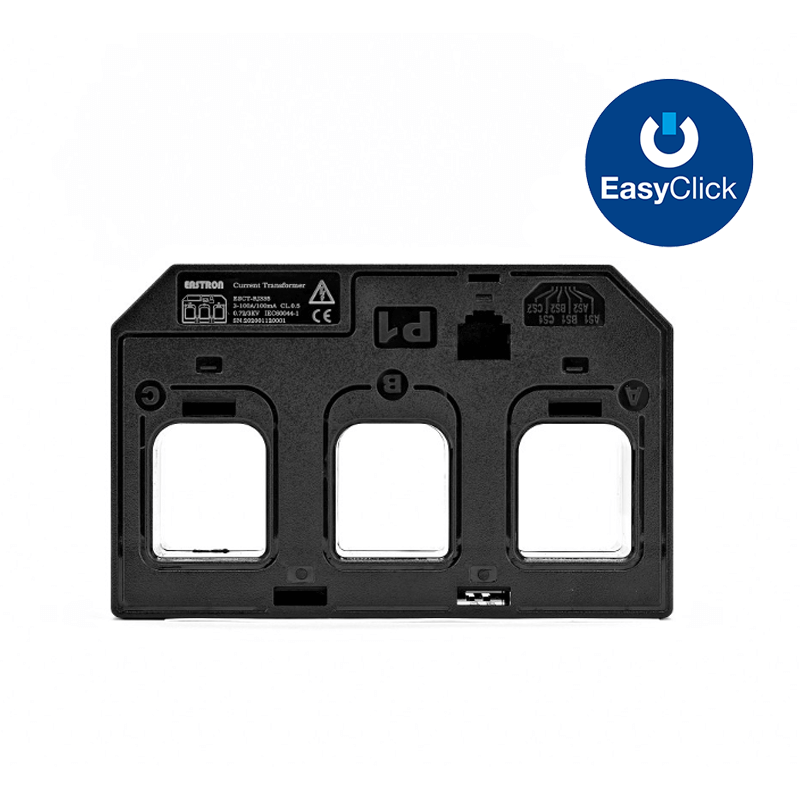

CT Information:
- 3ph
- Class 0.5 accuracy
- 60-200A Primary Current
- 0.1A Secondary Current (EasyClick)
- RJ12 connector output
- 35mm centers

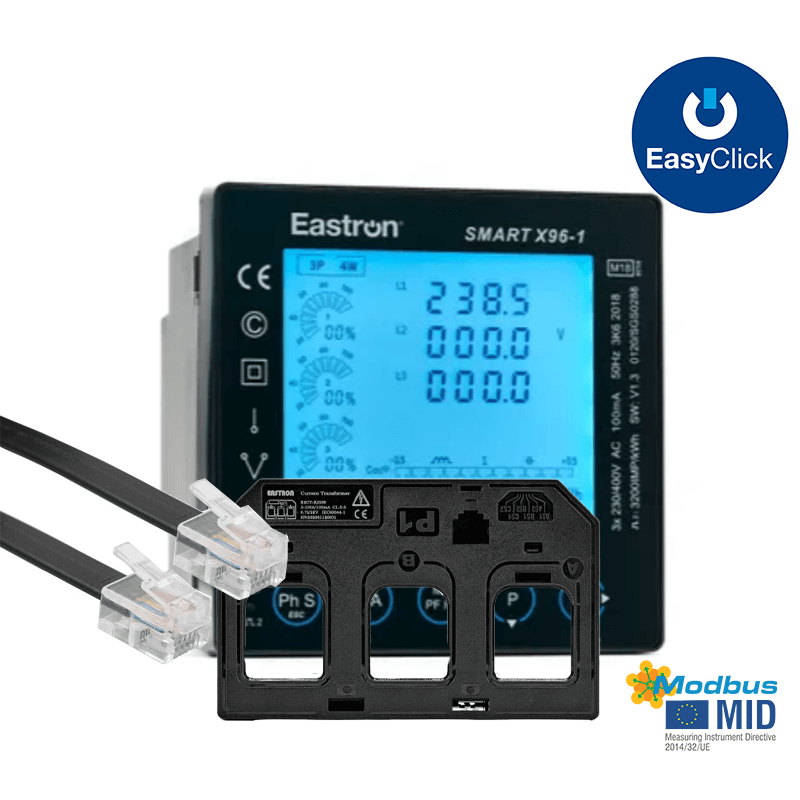

This bundle includes 1pc of Eastron SMART-X96-1-MID and 1pc of Eastron RJ335 Current Transformer
You will need to confirm what Current Transformer ratio you require before checkout, as per the options section below.
Meter Details:
Key features
What you get as standard
- Supplied from UK stock
- Free technical advice before you order
- Datasheet available to download
- Programming service where applicable
- Trade accounts available
- Next day delivery options
Technical data
Specification at a glance
- Brand
- See product title
- Product code
- See product code above
- Approvals
- See datasheet
- Full specification
- Download the datasheet
Programming
Read this before you order
Programmable products must be configured before dispatch. We set them up before they ship, so they arrive ready to install.
Add your settings to the order note at checkout, or call the team on 01268 300 300 to provide your programming configuration.
Wiring & downloads
Terminal layout and full datasheet
Installation must be carried out by a qualified electrician. Terminal layouts and connection diagrams are shown in the datasheet where available.
You can find the downloadable datasheets below:
Product Meter Datasheet PDF · View or download
Bundle: SMART-X96-1-MID & 1 x ESCT-RJ335-(insert ratio)/0.1A 3ph CT
