Overview
What it is and where it earns its place
Product Features:
- Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
- Multifunction Meter (16 different parameters)
- CT Operated (1A or 5A secondary - settable)
- 230/400V AC
- RS485 Modbus RTU
- Dual Pulse Outputs built-in
- 4-DIN Module
- Digital Backlit Display
- Touch Screen Buttons

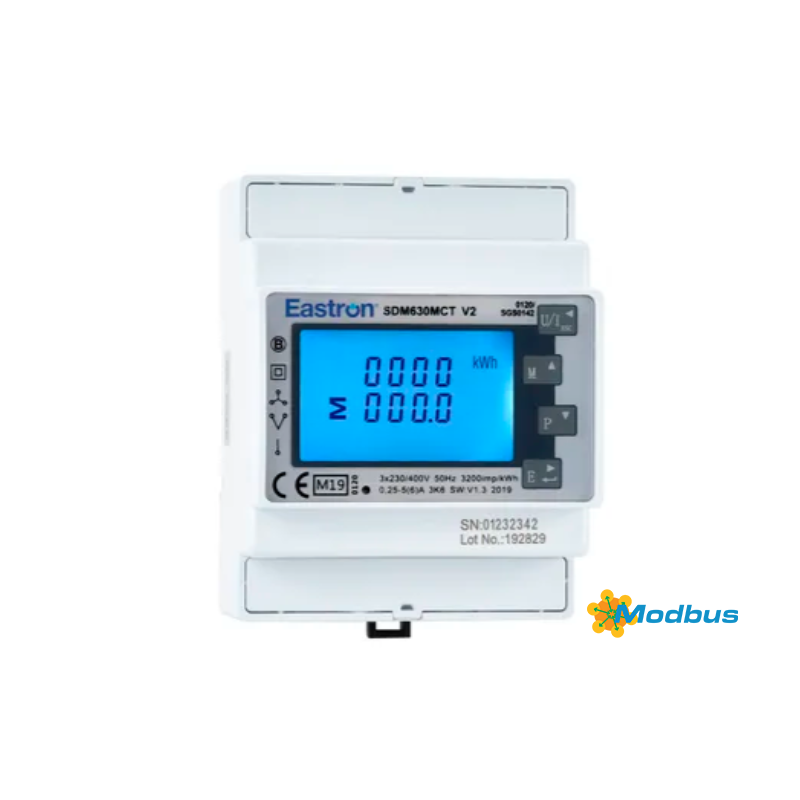

The SDM630MCT Series is a three-phase multifunction DIN-rail meter. It can measure and display the characteristic of 1p2w,3p3wand 3p4wsupplies, including voltage, current, power, active and reactive energy imported or exported. Energy is measured in terms of kWh, kVarh. Max demand current can be measured over preset periods of up to 60 minutes. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the meter. The required current inputs are obtained via current transformers. This meter can be configurable to work with a wide range of CTs, giving the unit a wide range of operations. The built-in interface provides pulse and RS485 Modbus or RTU/Mbus outputs. All the configuration is password protected.
Click Here For Product Datasheet
Click Here For Product Protocol
Key features
What you get as standard
- Supplied from UK stock
- Free technical advice before you order
- Datasheet available to download
- Programming service where applicable
- Trade accounts available
- Next day delivery options
Technical data
Specification at a glance
- Brand
- See product title
- Product code
- See product code above
- Approvals
- See datasheet
- Full specification
- Download the datasheet
Programming
Read this before you order
Programmable products must be configured before dispatch. We set them up before they ship, so they arrive ready to install.
Add your settings to the order note at checkout, or call the team on 01268 300 300 to provide your programming configuration.
Wiring & downloads
Terminal layout and full datasheet

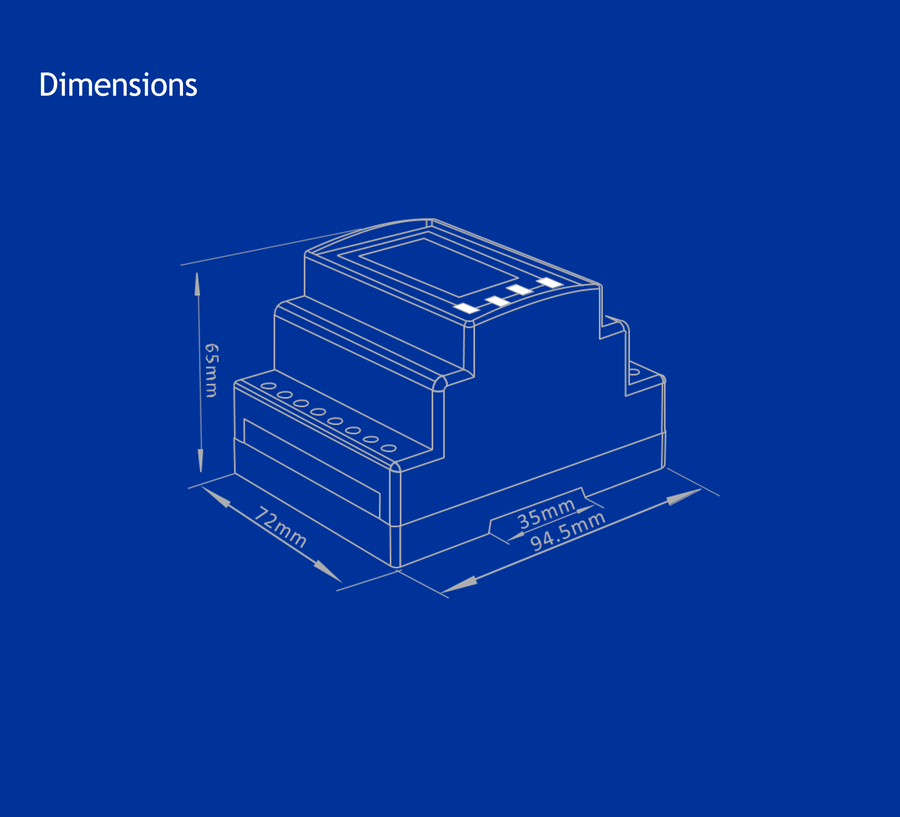

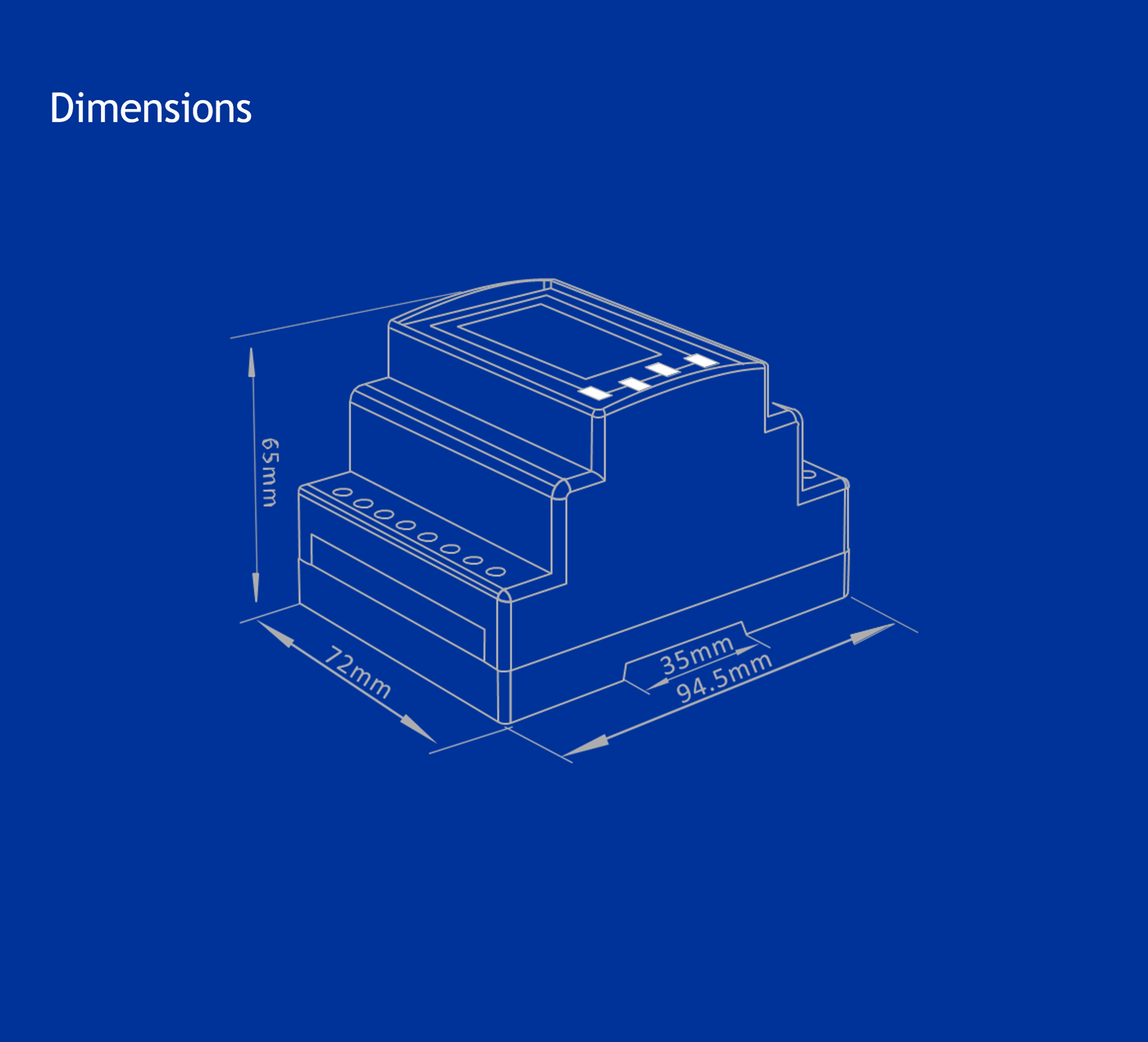

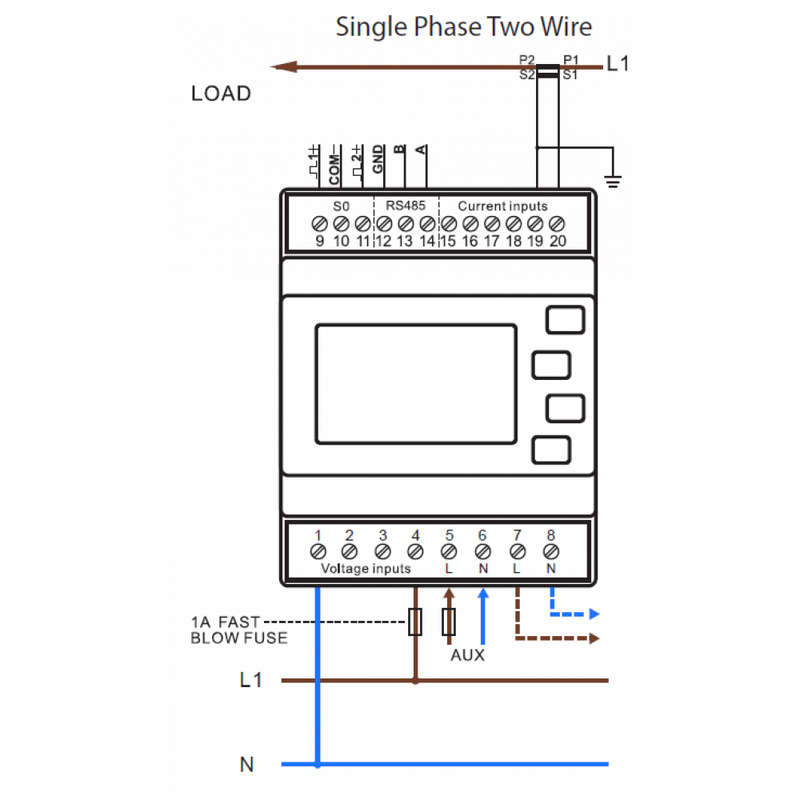

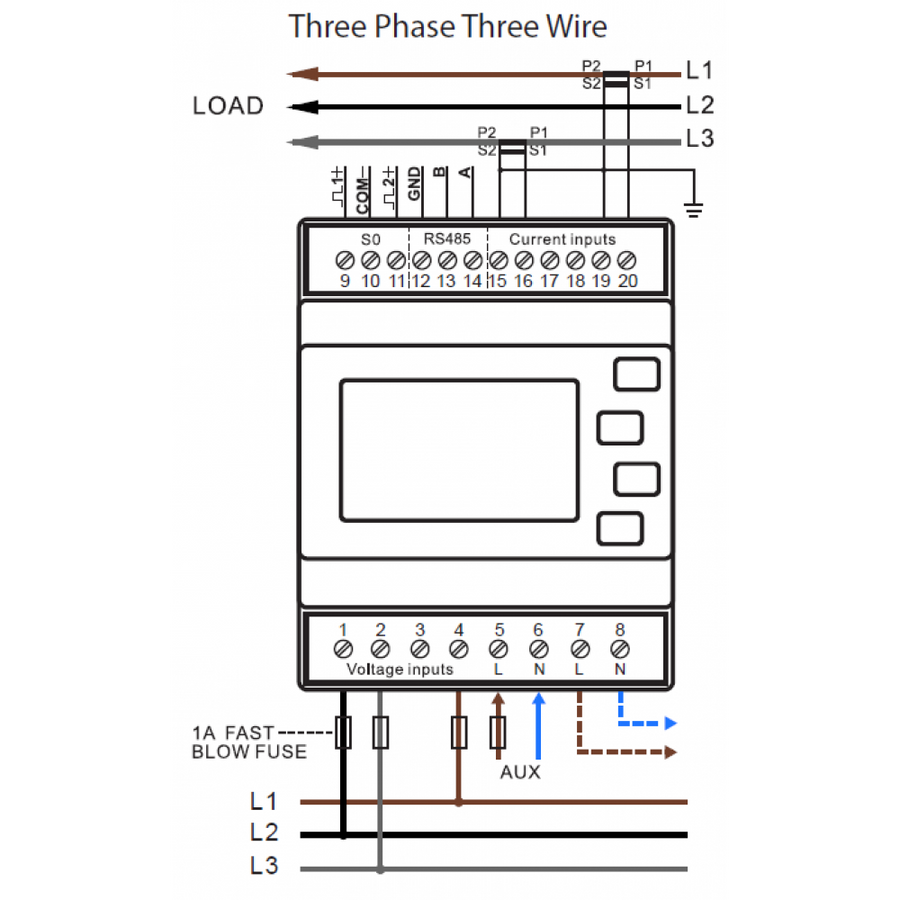

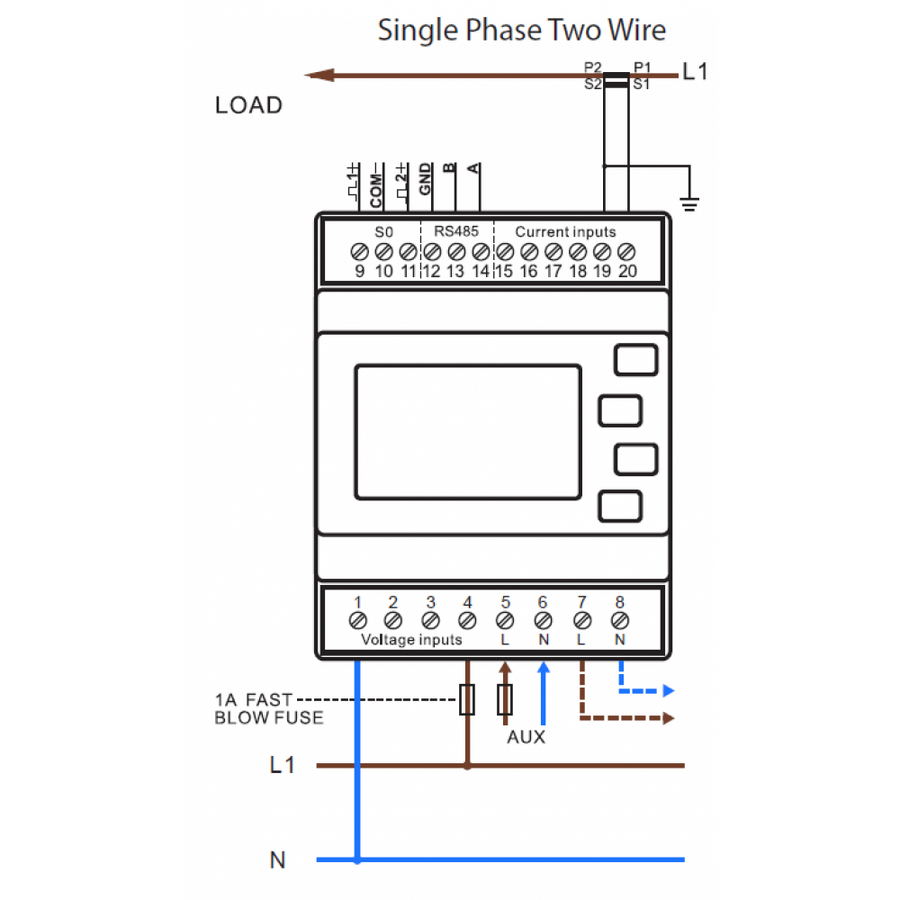

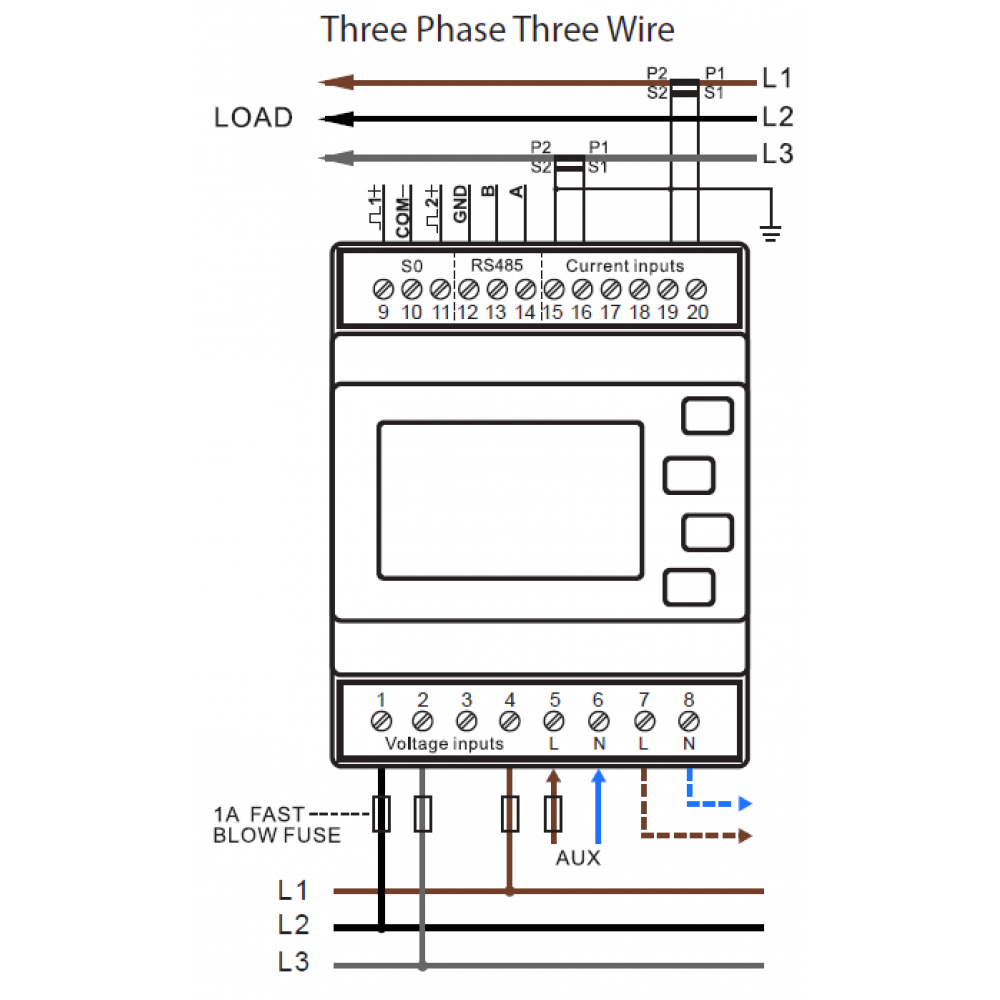

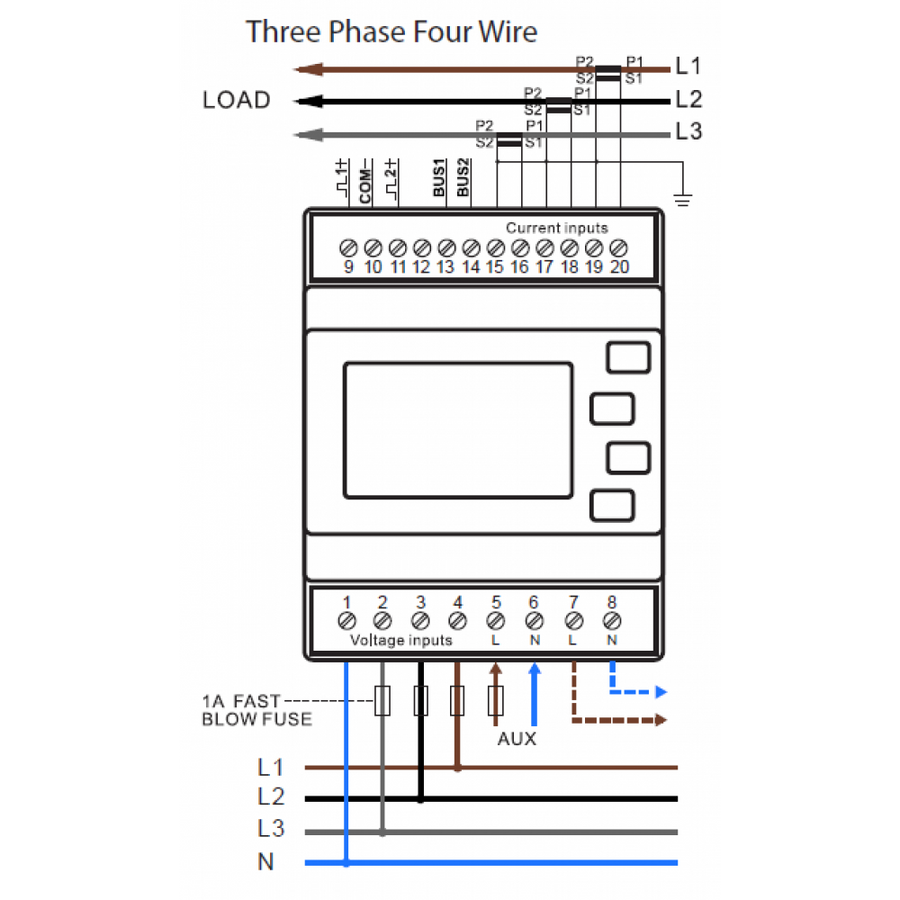

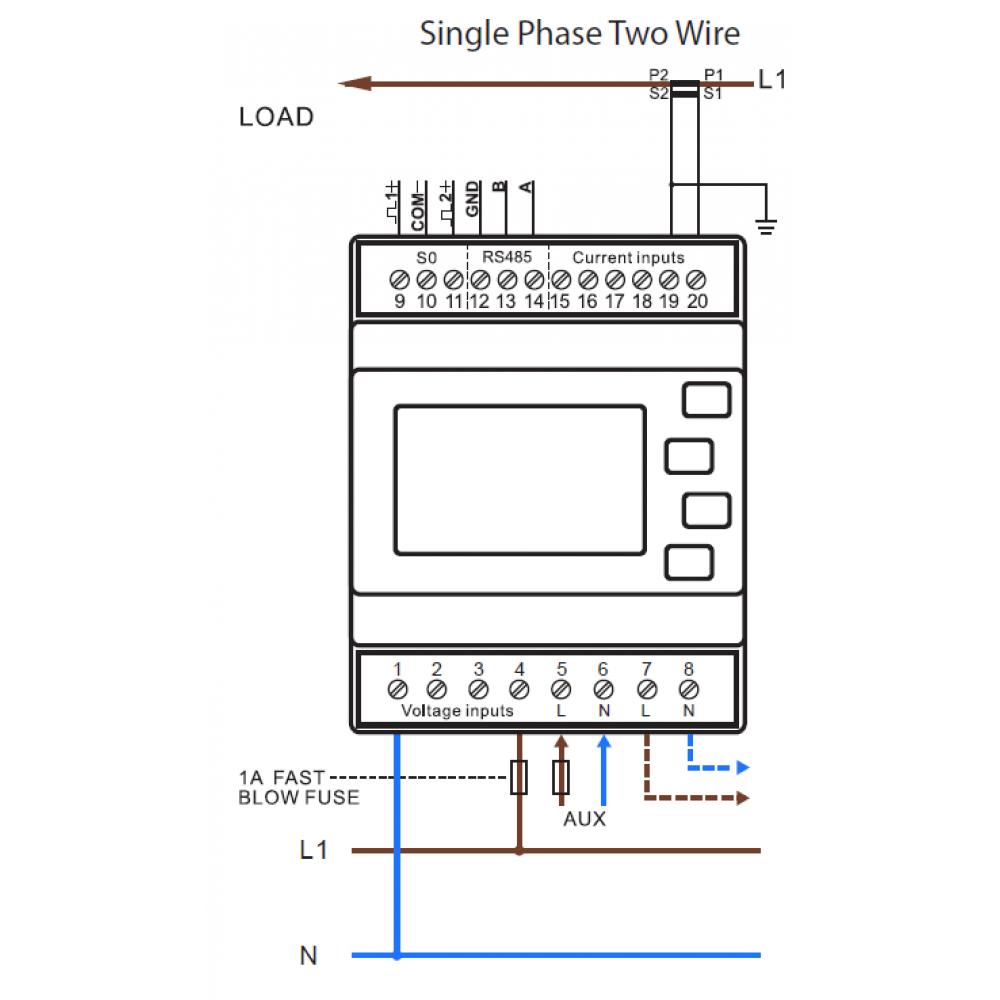

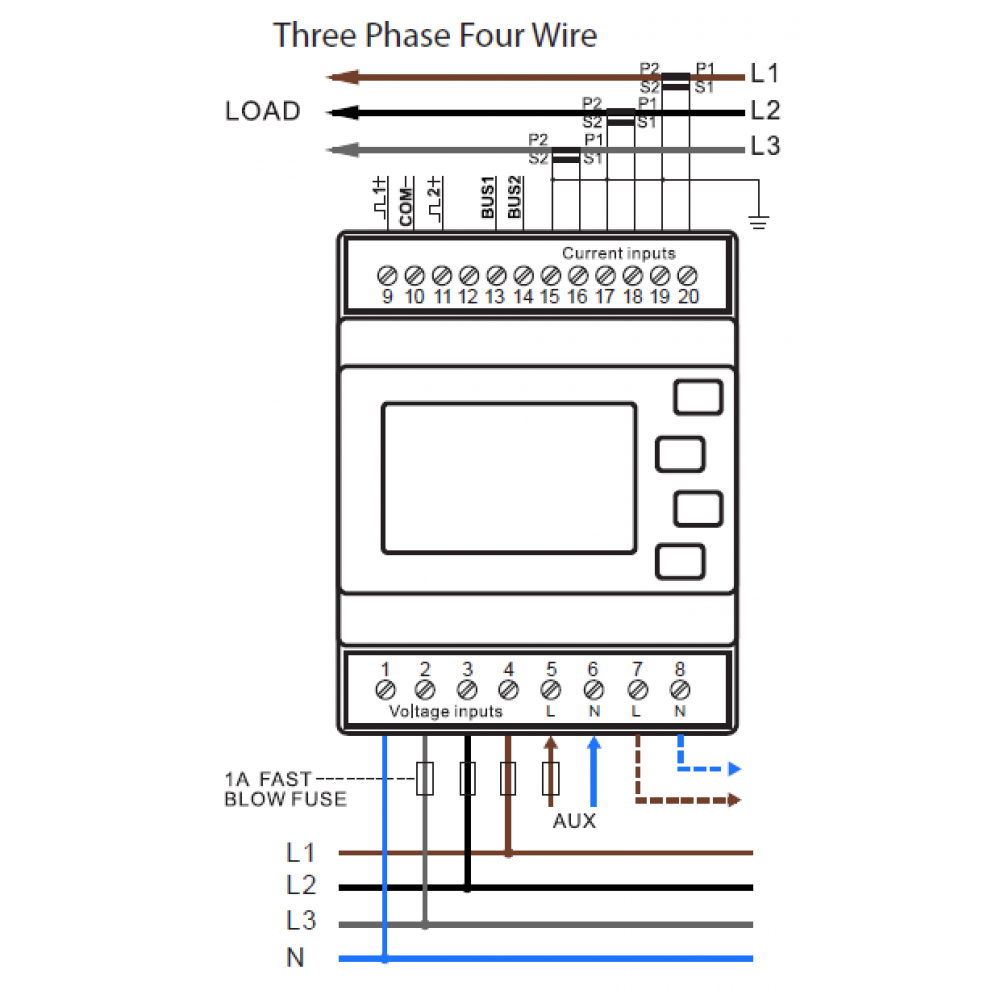

Installation must be carried out by a qualified electrician. Terminal layouts and connection diagrams are shown in the datasheet where available.
