Overview
What it is and where it earns its place
Product Features:
- Multifunction Meter (16 Different Parameters)

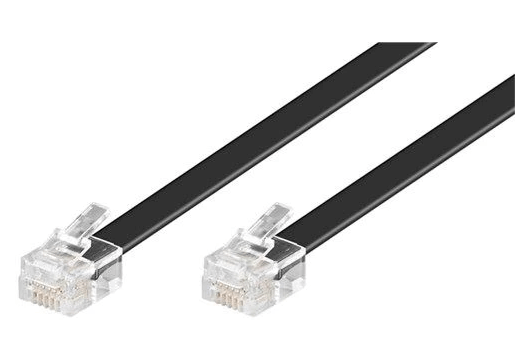

- EasyClick RJ12 CT Connections (plug and play)
- 12x Single Phase or 4x Three Phase (1ph or 3ph)
- CT Operated (0.1A / 100mA Secondary CT Input)
- Din Rail Mounted
- RS485 Modbus TCP Communications
- 87 - 257V AC
- 4 DIN Module
- Digital Backlit Display
- Touch Screen Buttons
The SDM630MCT-4L-TCP is the fourth member of 4 in our Din Rail mounted EasyClick range. Using RJ12 CT Connections, installation is a breeze and human error is a thing of the past when connecting the meter and CTs. The meter is housed in a 4 module din rail casing, allowing a snug fit into distribution boards and switchgears. RS485 Modbus Communication for remote monitoring with a datalogger or integration with your BMS, multifunctional with 16 different read parameters, this meter will provide in depth data reference your energy consumption and more. This is the perfect tool for monitoring energy and a true friend to any professional, electrical installer.
Key features
What you get as standard
- Supplied from UK stock
- Free technical advice before you order
- Datasheet available to download
- Programming service where applicable
- Trade accounts available
- Next day delivery options
Technical data
Specification at a glance
- Brand
- See product title
- Product code
- See product code above
- Approvals
- See datasheet
- Full specification
- Download the datasheet
Programming
Read this before you order
Programmable products must be configured before dispatch. We set them up before they ship, so they arrive ready to install.
Add your settings to the order note at checkout, or call the team on 01268 300 300 to provide your programming configuration.
Wiring & downloads
Terminal layout and full datasheet
Installation must be carried out by a qualified electrician. Terminal layouts and connection diagrams are shown in the datasheet where available.
You can find the downloadable datasheets below:
Product Meter Datasheet PDF · View or download
SDM630MCT-4L-TCP
