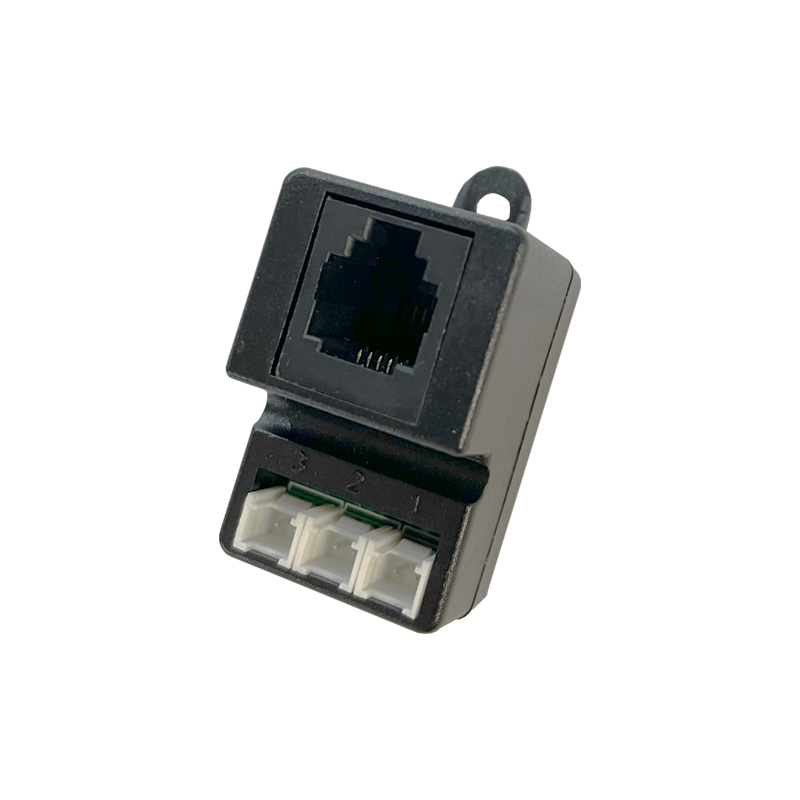

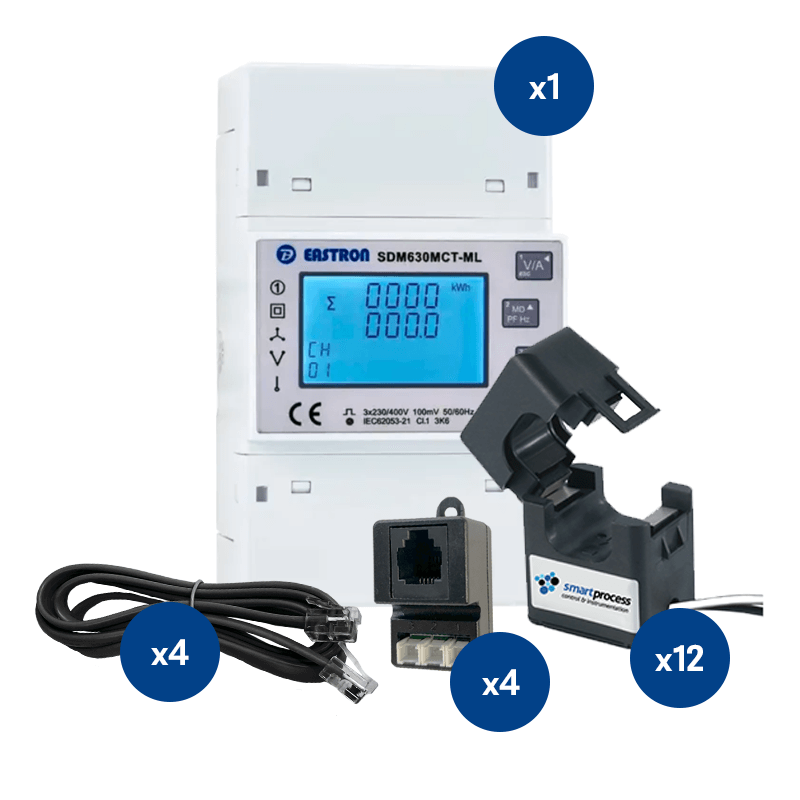

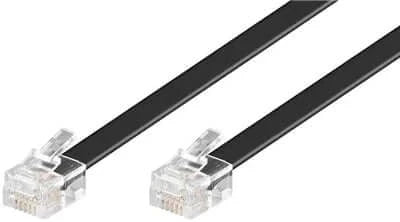

This bundle contains 1x SDM630MCT-4L-MID Three Phase electric meter, 12x TA24 Single Phase Split Core Current Transformer, 4x CRJ-31 RJ12 Adapter and 4x RJ12 1m Cable.
PRODUCTS FEATURES:
METER INFORMATION:

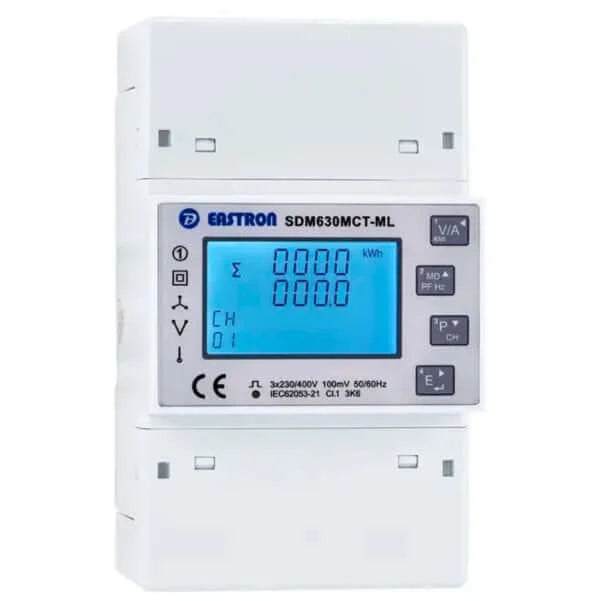

- Multifunction Meter (16 Different Parameters)
- EasyClick RJ12 CT Connections (plug and play)
- 12x Single Phase or 4x Three Phase (1ph or 3ph)
- CT Operated (0.1A / 100mA Secondary CT Input)
- Din Rail Mounted
- RS485 Modbus Communications
- 87 - 257V AC
- 4 DIN Module
- Digital Backlit Display
- Touch Screen Buttons

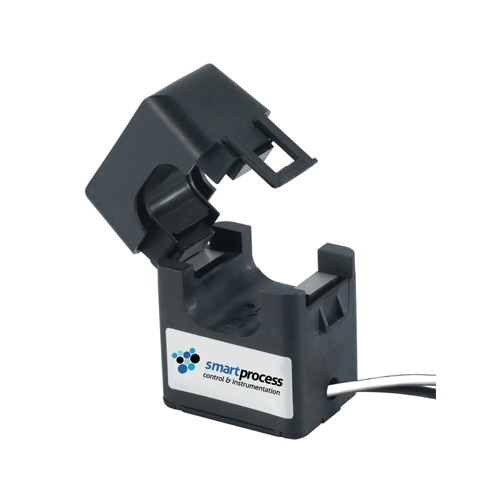

CT INFORMATION ESCT-TA24:
- 100-250A Primary Current
- 100mA Secondary Current
- Split Core CT
- Single Phase
- 24mm Aperture
CT INFORMATION ESCT-TA36:
- 300-600A Primary Current
- 100mA Secondary Current
- Split Core CT
- Single Phase
- 36mm Aperture
