Overview
What it is and where it earns its place
PRODUCT FEATURES:
- Single Phase (1P2W) or Three Phase (3P4W)
- Multifunction Meter (up to 5 different read parameters)
- CT Operated (1A or 5A secondary - settable)
- 230/400V AC
- RS485 Modbus RTU
- 1 Set Pulsed Output
- 4-DIN Module
- Digital Backlit Display
- Touch Screen Buttons
ENCLOSURE FEATURES:
- 4/8/12 WAY
- IP65 Weather Proof
- CE Approved
- ABS Enclosure with Polycarbonate Lid
- Suitable for Din Rail Mounted Electrical Distribution Products
CT INFORMATION
- Split Core
- Single Phase
- 24mm Aperture
- 100-250A (24mm Aperture) 300-600A (36mm Aperture)
- 5A Secondary Current
- 1m Fly Lead (2.5mm Wire)
- Accuracy Class 1
METER DETAILS:
CLICK HERE FOR PRODUCT DATASHEET
CLICK HERE FOR USER MANUAL
CT Details:
Key features
What you get as standard
- Supplied from UK stock
- Free technical advice before you order
- Datasheet available to download
- Programming service where applicable
- Trade accounts available
- Next day delivery options
Technical data
Specification at a glance
- Brand
- See product title
- Product code
- See product code above
- Approvals
- See datasheet
- Full specification
- Download the datasheet
Programming
Read this before you order
Programmable products must be configured before dispatch. We set them up before they ship, so they arrive ready to install.
Add your settings to the order note at checkout, or call the team on 01268 300 300 to provide your programming configuration.
Wiring & downloads
Terminal layout and full datasheet
Installation must be carried out by a qualified electrician. Terminal layouts and connection diagrams are shown in the datasheet where available.
You can find the downloadable datasheets below:
Product Meter Datasheet PDF · View or download

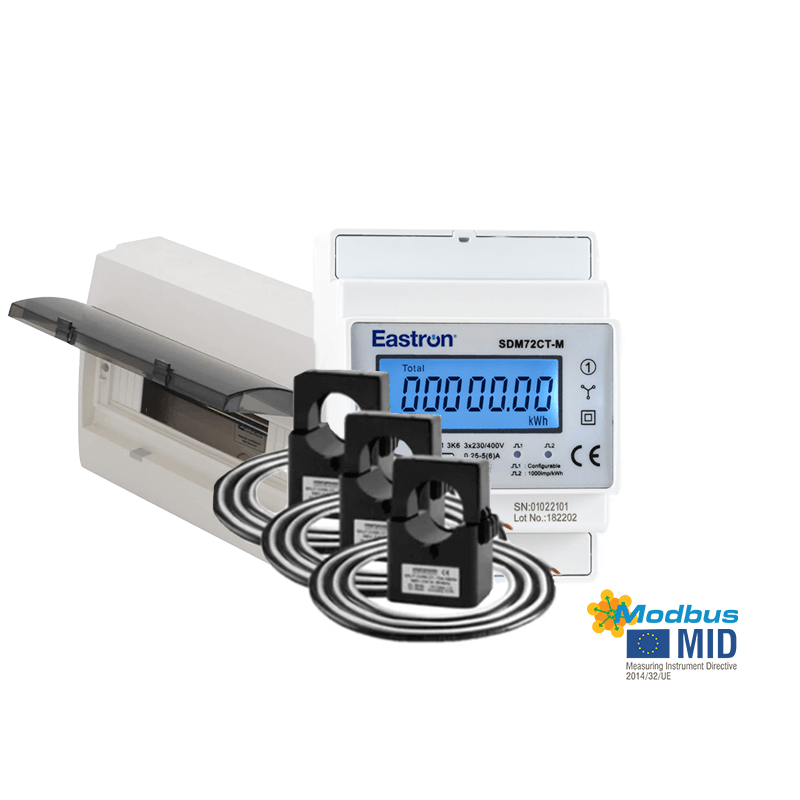

BUNDLE: SDM72CT-M & 3X T24/T36 SPLIT CORE CURRENT TRANSFORMERS & Din Rail Enclosure
-approved metering and instrumentation, specified and supported by our own engineers.
Excluding VAT. Shipping calculated at checkout.
Programmable products must be configured before dispatch. Add your settings to the order note at checkout.
