Overview
What it is and where it earns its place
Call us on 01268 773 422 or send an email to enquiry@smartprocess.co.uk if you're interested in having this prewired.
Meter Information:
- MID B&D Approved - 0120/SGS0150
- Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
- Multifunction Meter (16 different parameters)
- CT Operated (1A or 5A secondary - settable)
- 230/400V AC
- RS485 Modbus RTU
- Dual Pulse Outputs built in
- 4-DIN Module
- Digital Backlit Display
- Touch Screen Buttons

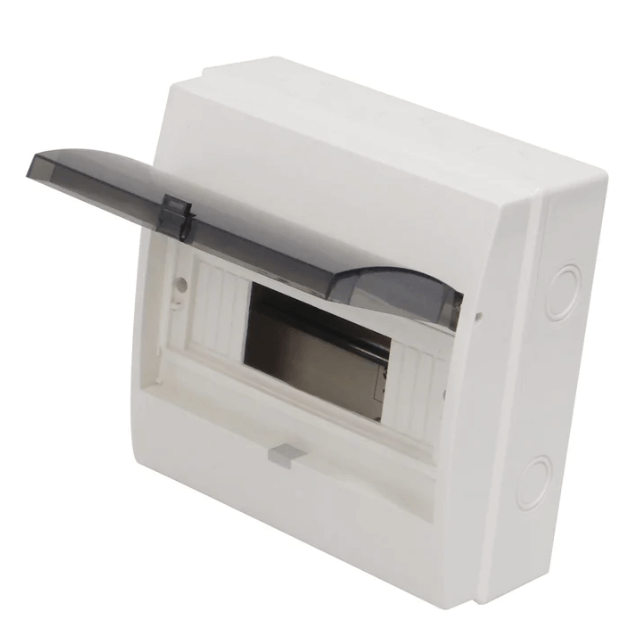

Enclosure Features:
- 4/8/12 WAY
- IP65 Weather Proof
- CE Approved
- ABS Enclosure with Polycarbonate Lid
- Suitable for Din Rail Mounted Electrical Distribution Products

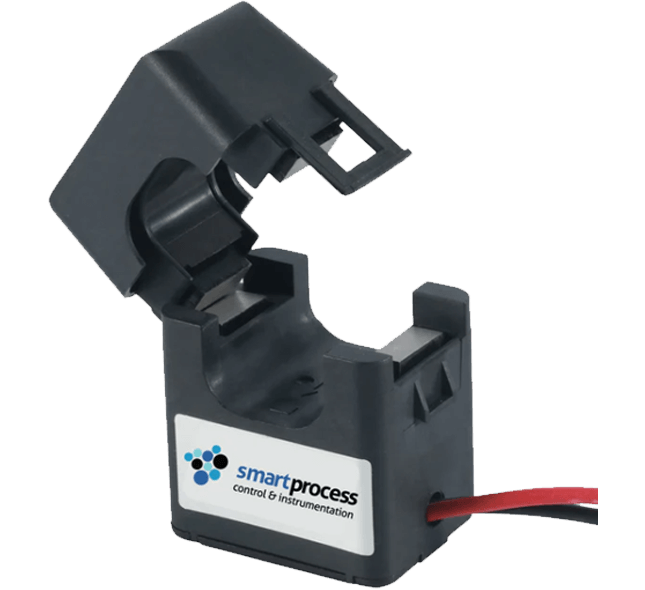

CT Information:
- Split Core
- 100-250A (24mm Aperture) 300-600 (36mm Aperture)
- 5A Secondary Current
- 1m Fly Lead (2.5mm Wire)
- Accuracy Class 1
Meter Details:
Click Here For Product Datasheet
Click Here For User Manual
Click Here For Product Protocol
CT Details:
Click Here For Product Datasheet
Key features
What you get as standard
- Supplied from UK stock
- Free technical advice before you order
- Datasheet available to download
- Programming service where applicable
- Trade accounts available
- Next day delivery options
Technical data
Specification at a glance
- Brand
- See product title
- Product code
- See product code above
- Approvals
- See datasheet
- Full specification
- Download the datasheet
Programming
Read this before you order
Programmable products must be configured before dispatch. We set them up before they ship, so they arrive ready to install.
Add your settings to the order note at checkout, or call the team on 01268 300 300 to provide your programming configuration.
Wiring & downloads
Terminal layout and full datasheet
Installation must be carried out by a qualified electrician. Terminal layouts and connection diagrams are shown in the datasheet where available.
You can find the downloadable datasheets below:
Product Meter Datasheet PDF · View or download

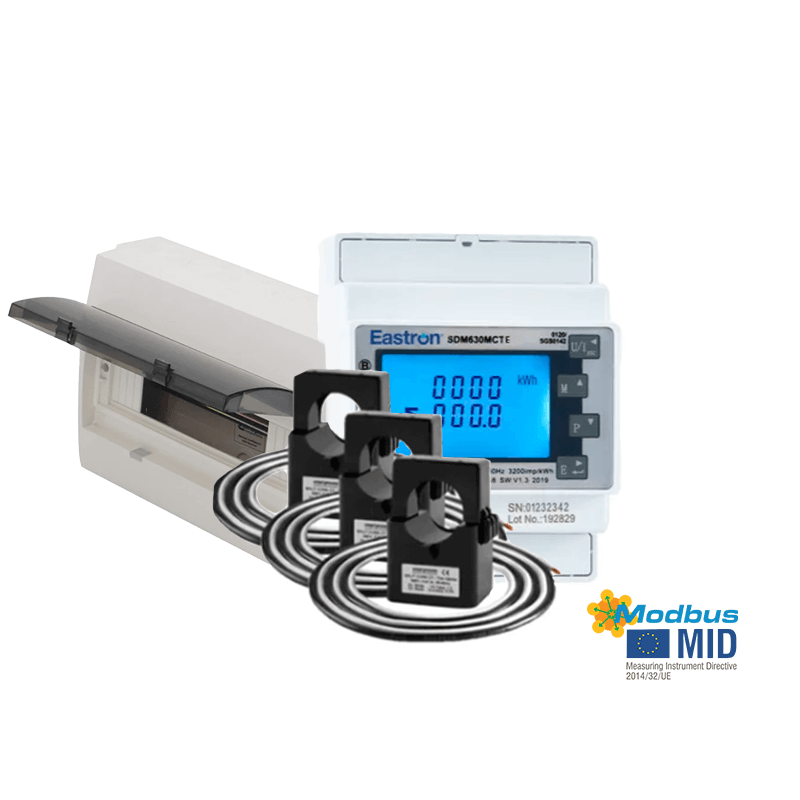

Bundle: SDM630MCT-MOD-MID & DIN RAIL ENCLOSURE & 3x T24/T36 Current Transformers
