METER INFORMATION:

  • MID B&D Approved - 0120/SGS0150
  • Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
  • Multifunction Meter (16 different parameters)
  • CT Operated (1A or 5A secondary - settable)
  • 230/400V AC
  • RS485 Modbus RTU
  • Dual Pulse Outputs built in
  • 4-DIN Module
  • Digital Backlit Display
  • Touch Screen Buttons

CT information:

  • can take cables up to 21mm diameter
  • 30mm x 10mm Busbar Aperture
  • 25mm x 15mm Busbar Aperture
  • 20mm x 20mm Busbar Aperture
  • 40-300A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3
  • Busbar or DIN Rail Mounted

Meter Details:

CLICK HERE FOR PRODUCT DATASHEET

CLICK HERE FOR USER MANUAL

CLICK HERE FOR PRODUCT PROTOCOL

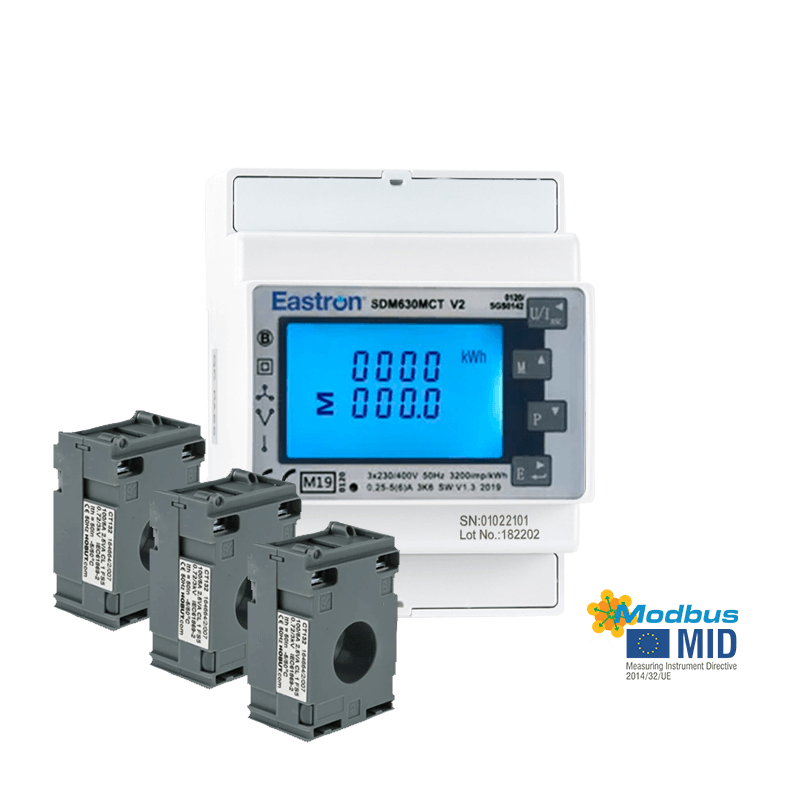

Bundle: SDM630MCT-MOD-MID & 3X CT132 Split Core Current Transformers
