Overview
What it is and where it earns its place

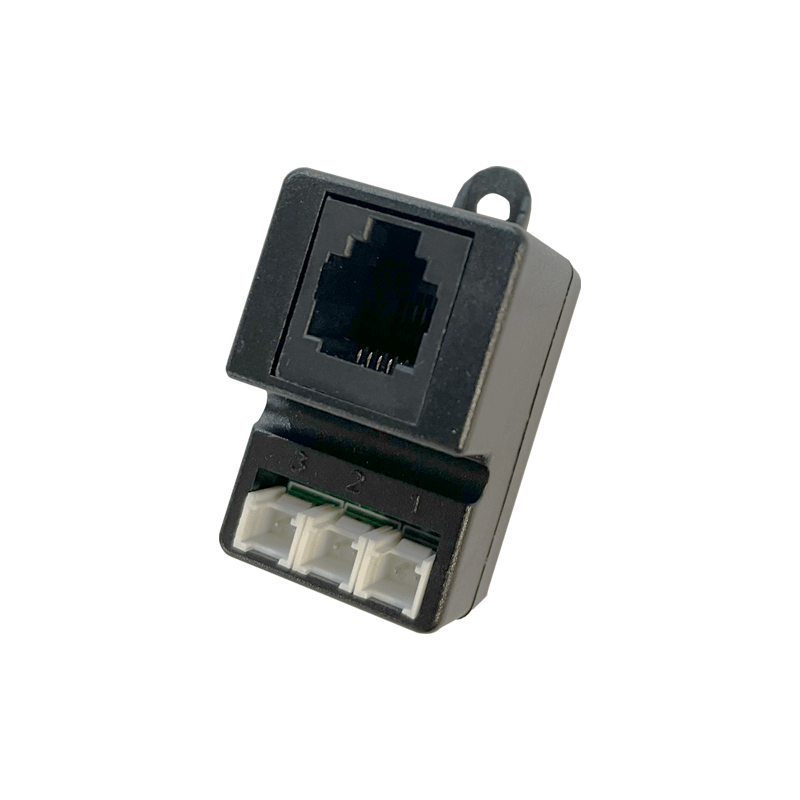

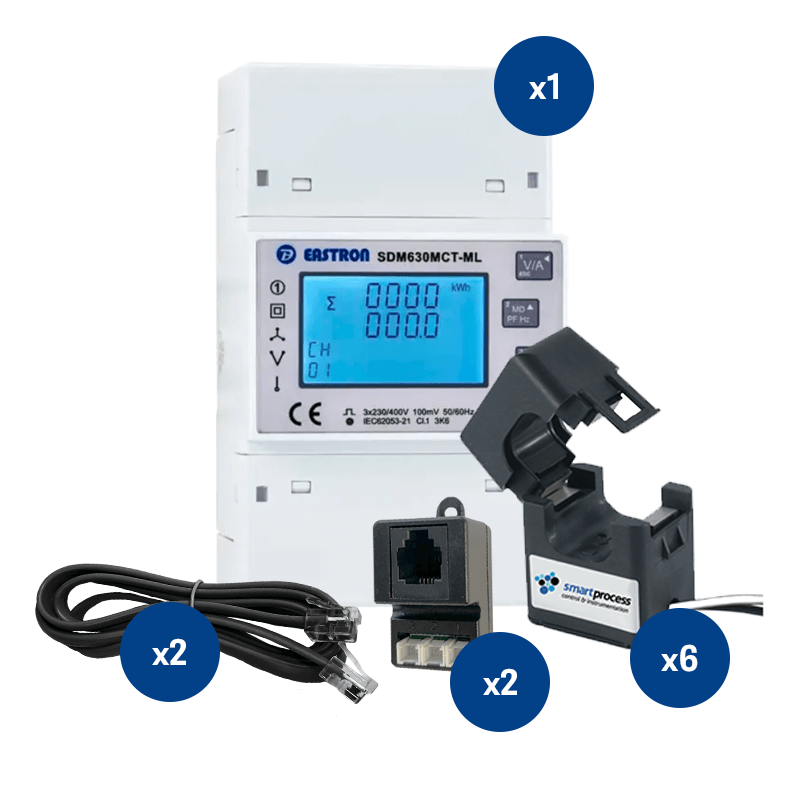

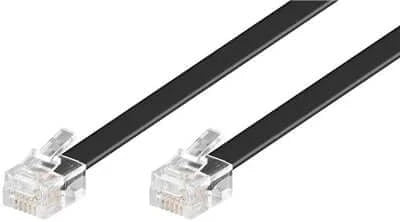

This bundle contains 1x SDM630MCT-2L-MID Three Phase electric meter, 6x TA24 Single Phase Split Core Current Transformer, 2x CRJ-31 RJ12 Adapter and 2x RJ12 1m Cable.
PRODUCTS FEATURES:

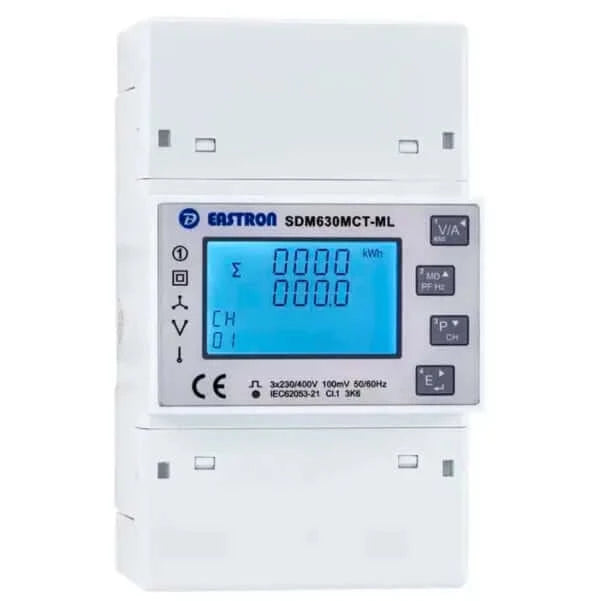

METER INFORMATION:
- Multifunction Meter (16 Different Parameters)
- EasyClick RJ12 CT Connections (plug and play)
- 6x Single Phase or 2x Three Phase (1ph or 3ph)
- CT Operated (0.1A / 100mA Secondary CT Input)
- Din Rail Mounted
- RS485 Modbus Communications
- 87 - 257V AC
- 4 DIN Module
- Digital Backlit Display
- Touch Screen Buttons

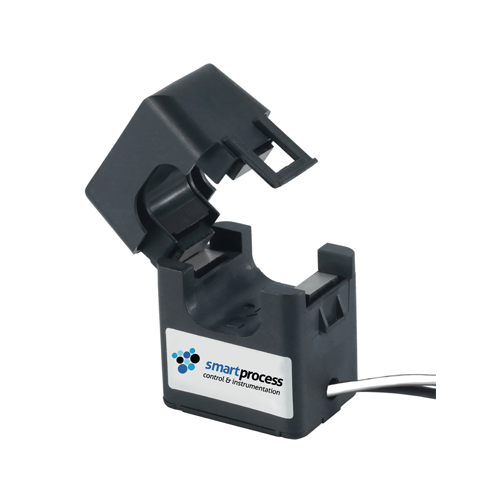

CT INFORMATION ESCT-TA24:
- 100-250A Primary Current
- 100mA Secondary Current
- Split Core CT
- Single Phase
- 24mm Aperture
CT INFORMATION ESCT-TA36:
- 300-600A Primary Current
- 100mA Secondary Current
- Split Core CT
- Single Phase
- 36mm Aperture
Key features
What you get as standard
- Supplied from UK stock
- Free technical advice before you order
- Datasheet available to download
- Programming service where applicable
- Trade accounts available
- Next day delivery options
Technical data
Specification at a glance
- Brand
- See product title
- Product code
- See product code above
- Approvals
- See datasheet
- Full specification
- Download the datasheet
Programming
Read this before you order
Programmable products must be configured before dispatch. We set them up before they ship, so they arrive ready to install.
Add your settings to the order note at checkout, or call the team on 01268 300 300 to provide your programming configuration.
Wiring & downloads
Terminal layout and full datasheet
Installation must be carried out by a qualified electrician. Terminal layouts and connection diagrams are shown in the datasheet where available.
You can find the downloadable datasheets below:
Product Meter Datasheet PDF · View or download
Bundle: SDM630MCT-2L-MID & 6x TA24/TA36 Single Phase Split Core Current Transformers
-approved metering and instrumentation, specified and supported by our own engineers.
Excluding VAT. Shipping calculated at checkout.
Programmable products must be configured before dispatch. Add your settings to the order note at checkout.
