Everything you need before you install
Product specific information, technical data and installation guidance in one place.
Overview
What it is and where it earns its place

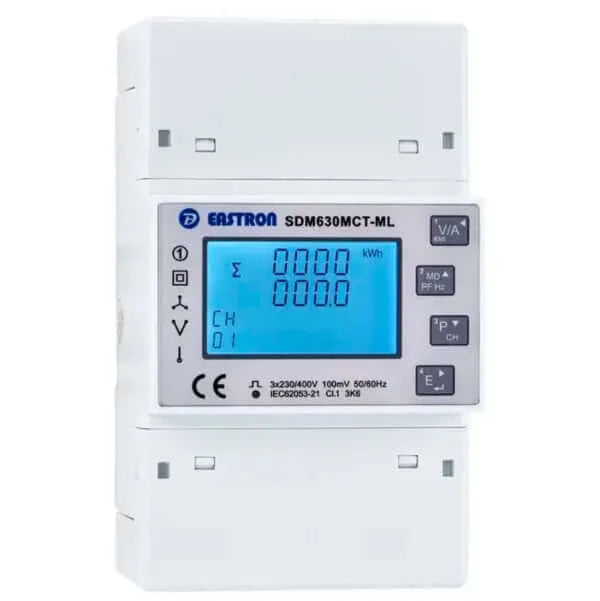

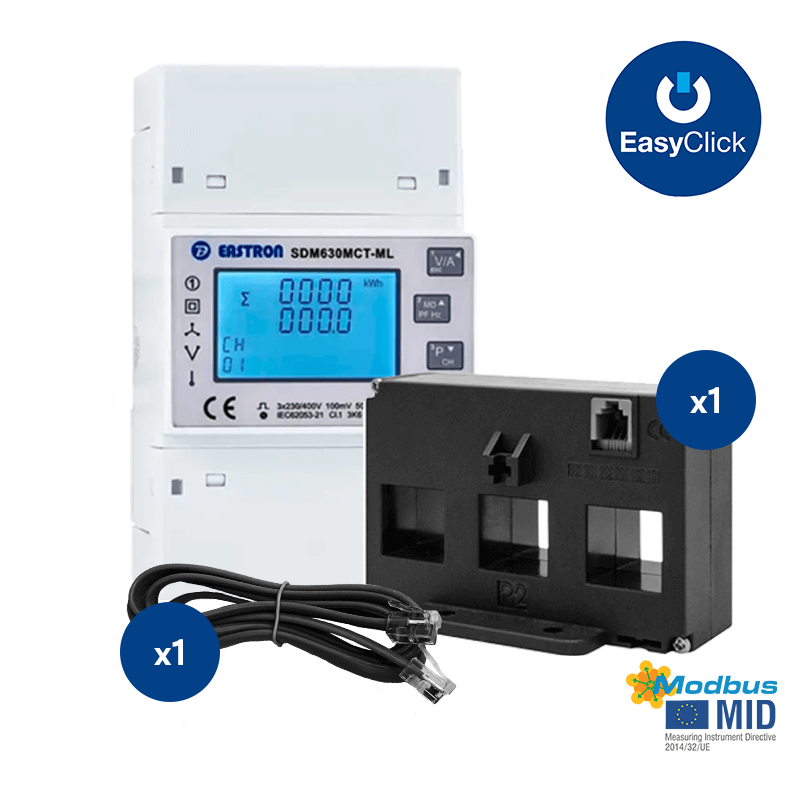

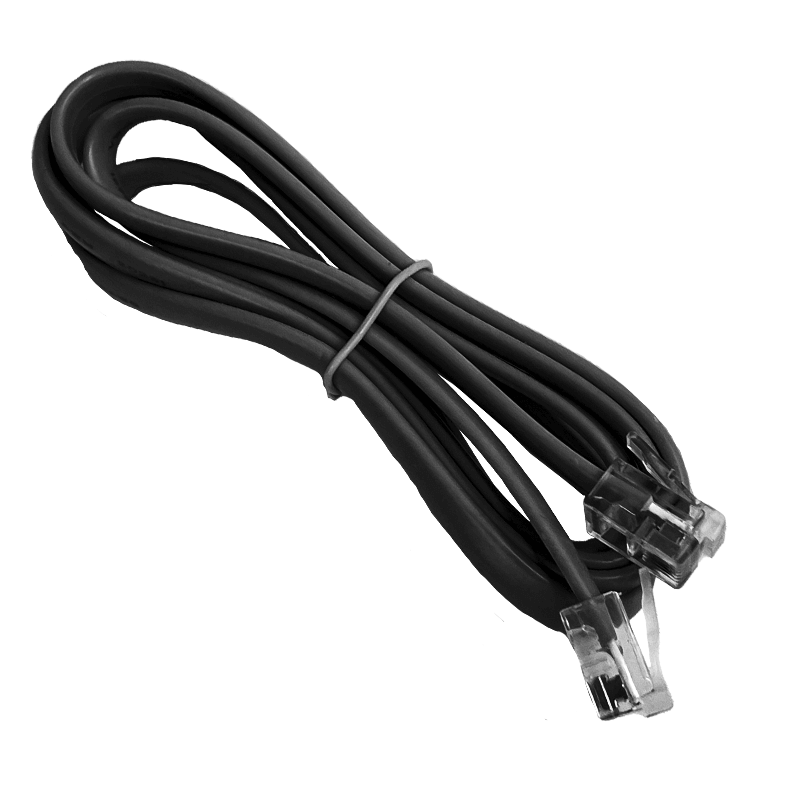

This bundle contains 1x SDM630MCT-1L-MID Three Phase electric meter, 1x ESCT-RJ335 Three Phase Solid Core Current Transformer and 1x RJ12 Cable 1.5 Meter Three Phase
PRODUCTS FEATURES:
METER INFORMATION:
- Multifunction Meter (16 Different Parameters)
- EasyClick RJ12 CT Connections (plug and play)
- Single or Three Phase (1ph or 3ph)
- CT Operated (0.1A / 100mA Secondary CT Input)
- Din Rail Mounted
- RS485 Modbus Communications
- 87 - 257V AC
- 4 DIN Module
- Digital Backlit Display
- Touch Screen Buttons

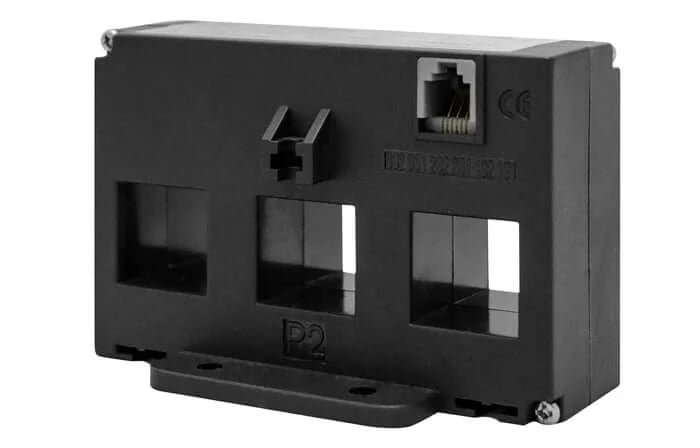

CT INFORMATION:
- 3ph
- Class 0.5 accuracy
- 60-200A Primary Current
- 0.1A Secondary Current (EasyClick)
- RJ12 connector output
- 35mm centers
Click Here For Product Datasheet
Click Here For Product User Manual
Key features
What you get as standard
- Supplied from UK stock
- Free technical advice before you order
- Datasheet available to download
- Programming service where applicable
- Trade accounts available
- Next day delivery options
Technical data
Specification at a glance
- Brand
- See product title
- Product code
- See product code above
- Approvals
- See datasheet
- Full specification
- Download the datasheet
Programming
Read this before you order
Programmable products must be configured before dispatch. We set them up before they ship, so they arrive ready to install.
Add your settings to the order note at checkout, or call the team on 01268 300 300 to provide your programming configuration.
Wiring & downloads
Terminal layout and full datasheet
Installation must be carried out by a qualified electrician. Terminal layouts and connection diagrams are shown in the datasheet where available.
You can find the downloadable datasheets below:
Product Meter Datasheet PDF · View or download
Bundle: SDM630MCT-1L-MID & ESCT-RJ335 Three Phase Solid Core Current Transformer
-approved metering and instrumentation, specified and supported by our own engineers.
Excluding VAT. Shipping calculated at checkout.
Programmable products must be configured before dispatch. Add your settings to the order note at checkout.
