Overview
What it is and where it earns its place
Meter Information
- Single Phase 5A current transformer operated
- MID Certified (B and D)
- Bi-directional measurement for kW and kWh
- Configurable pulsed output (Import, Export, Nett kWh)
- Dual Pulsed Communications
- Multi Parameter measurements
- Simple set up and operation
- Din Rail Mounted
CT information:
- Single Phase
- primary ratio options: 40A-300A
- 21mm Diameter
- 20mm x 6mm Busbar Aperture
- 50-300A Primary Current
- 5A Secondary Current
- Secondary M4 Screw Terminals
- Accuracy Class 0.5, 1 or 3
- Busbar or DIN Rail Mounted
Meter Details:
Click Here For Product Datasheet
Click Here For User Manual
Click Here For Product Protocol
CT Details:
Click Here For Product Datasheet
Key features
What you get as standard
- Supplied from UK stock
- Free technical advice before you order
- Datasheet available to download
- Programming service where applicable
- Trade accounts available
- Next day delivery options
Technical data
Specification at a glance
- Brand
- See product title
- Product code
- See product code above
- Approvals
- See datasheet
- Full specification
- Download the datasheet
Programming
Read this before you order
Programmable products must be configured before dispatch. We set them up before they ship, so they arrive ready to install.
Add your settings to the order note at checkout, or call the team on 01268 300 300 to provide your programming configuration.
Wiring & downloads
Terminal layout and full datasheet
Installation must be carried out by a qualified electrician. Terminal layouts and connection diagrams are shown in the datasheet where available.
You can find the downloadable datasheets below:
Product Meter Datasheet PDF · View or download

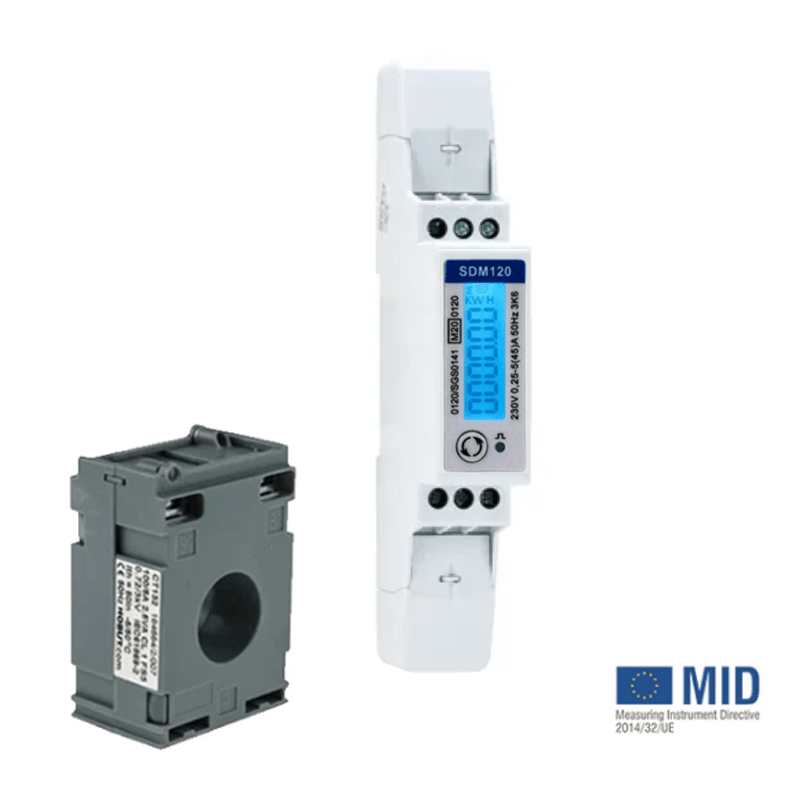

Bundle: SDM120CT-PULSE & CT132 Solid Core Current Transformer
-approved metering and instrumentation, specified and supported by our own engineers.
Excluding VAT. Shipping calculated at checkout.
Programmable products must be configured before dispatch. Add your settings to the order note at checkout.
