Overview
What it is and where it earns its place
Products Features:

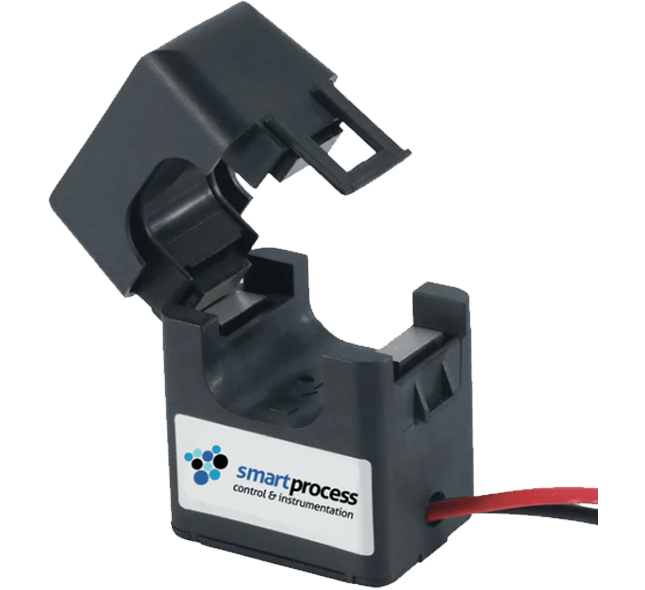

- Split Core
- Single Phase

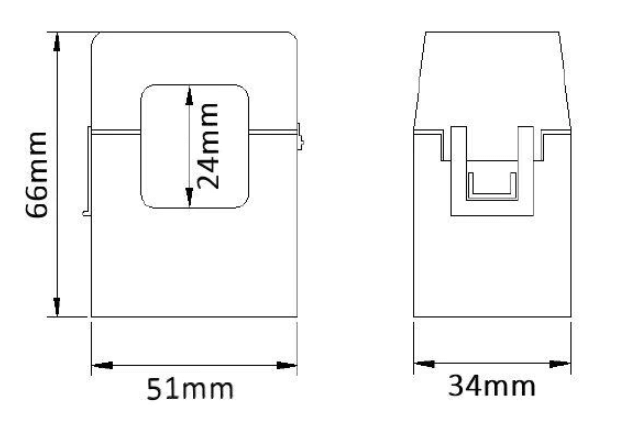

- 24mm Aperture
- 100-250A Primary Current
- 5A Secondary Current
- 1m Fly Lead (2.5mm Wire)
- Accuracy Class 1

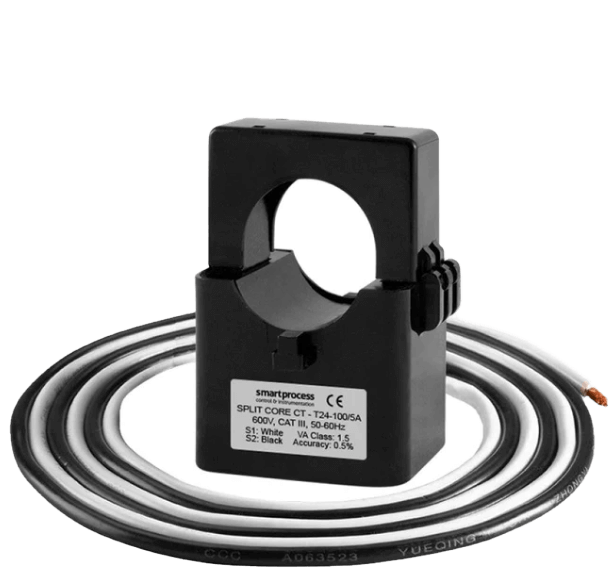

The T24 Range of Split Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors. These three pieces of current transformers are perfect for Three Phase applications. The aperture on this model accommodates 24mm² Cable. The T24 is ideal for applications such as Distribution systems, Generator sets, Control Panels, and Switchgears.
Key features
What you get as standard
- Supplied from UK stock
- Free technical advice before you order
- Datasheet available to download
- Programming service where applicable
- Trade accounts available
- Next day delivery options
Technical data
Specification at a glance
- Brand
- See product title
- Product code
- See product code above
- Approvals
- See datasheet
- Full specification
- Download the datasheet
Programming
Read this before you order
Programmable products must be configured before dispatch. We set them up before they ship, so they arrive ready to install.
Add your settings to the order note at checkout, or call the team on 01268 300 300 to provide your programming configuration.
Wiring & downloads
Terminal layout and full datasheet
Installation must be carried out by a qualified electrician. Terminal layouts and connection diagrams are shown in the datasheet where available.
You can find the downloadable datasheets below:
Product Meter Datasheet PDF · View or download

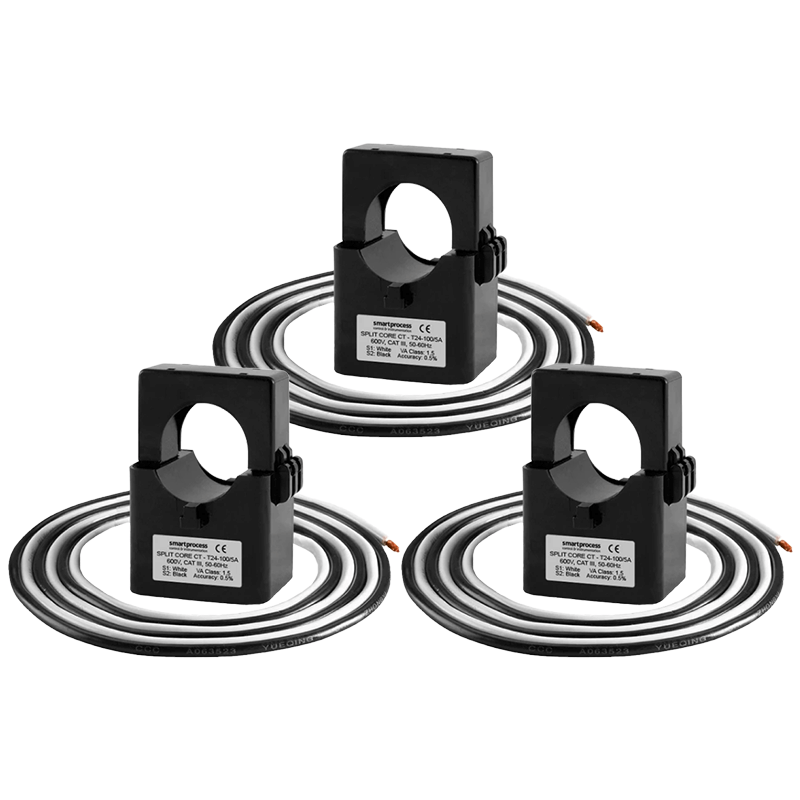

Bundle: 3x T24 Split Core CT's
