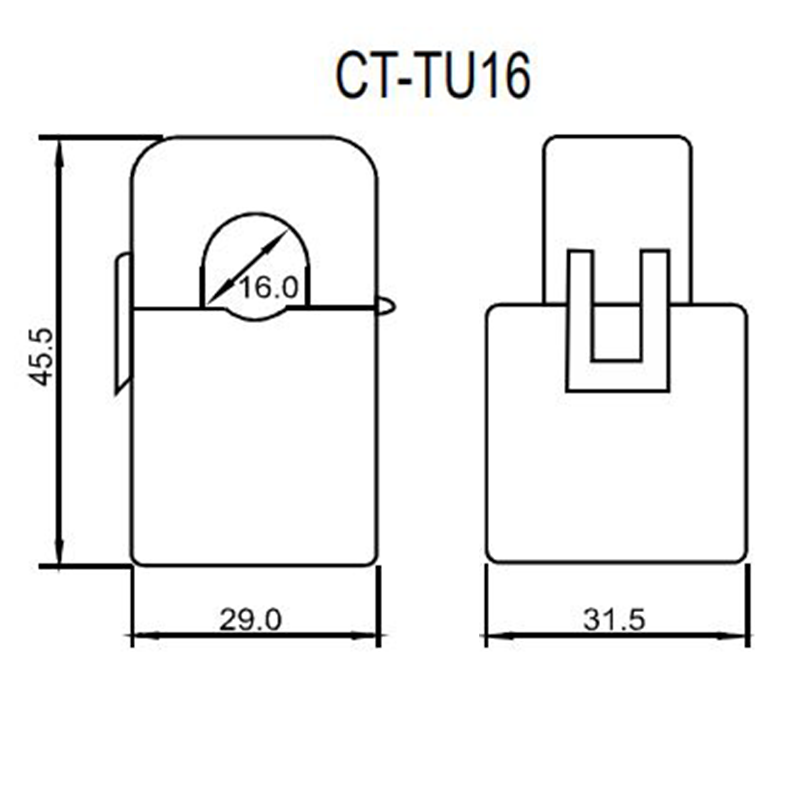

TU16 Miniature Split Core Current Transformer 0.333mV Dimensions
TU16 Miniature Split Core Current Transformer 0.333mV
TU16 Miniature Split Core Current Transformer 0.333mV
TU16 Miniature Split Core Current Transformer 0.333mV

Eastron

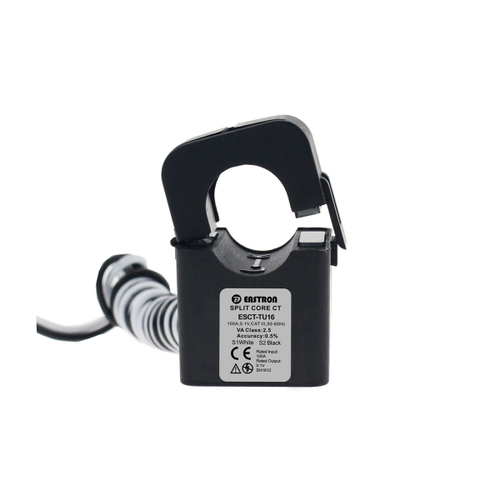

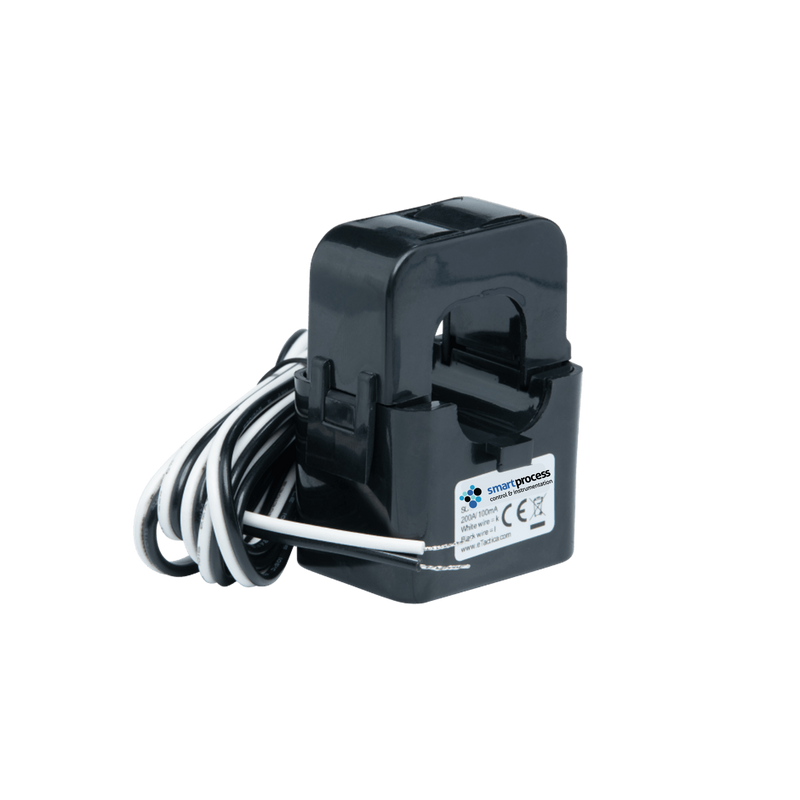

TU16 Miniature Split Core Current Transformer 0.333mV

SKU: TU16-0.333mV

£26

Excluding VAT. Shipping calculated at checkout.

Product Features:

  • 150A Primary Current
  • 0.333mV Secondary Current

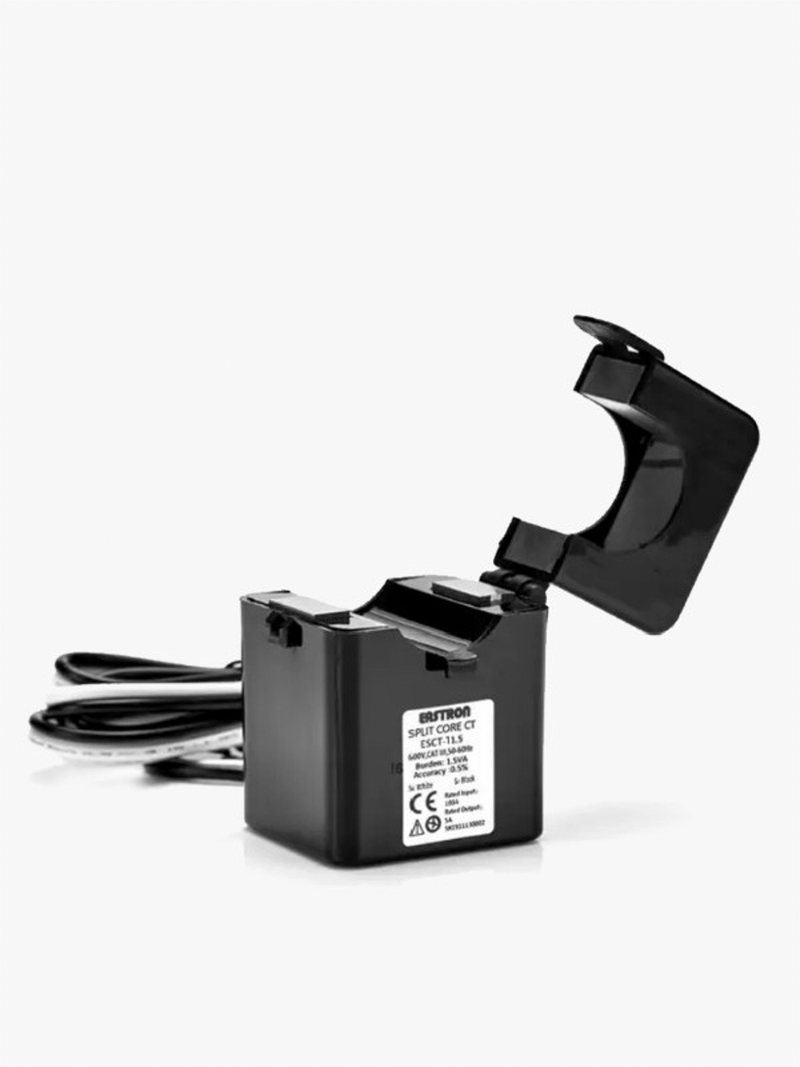

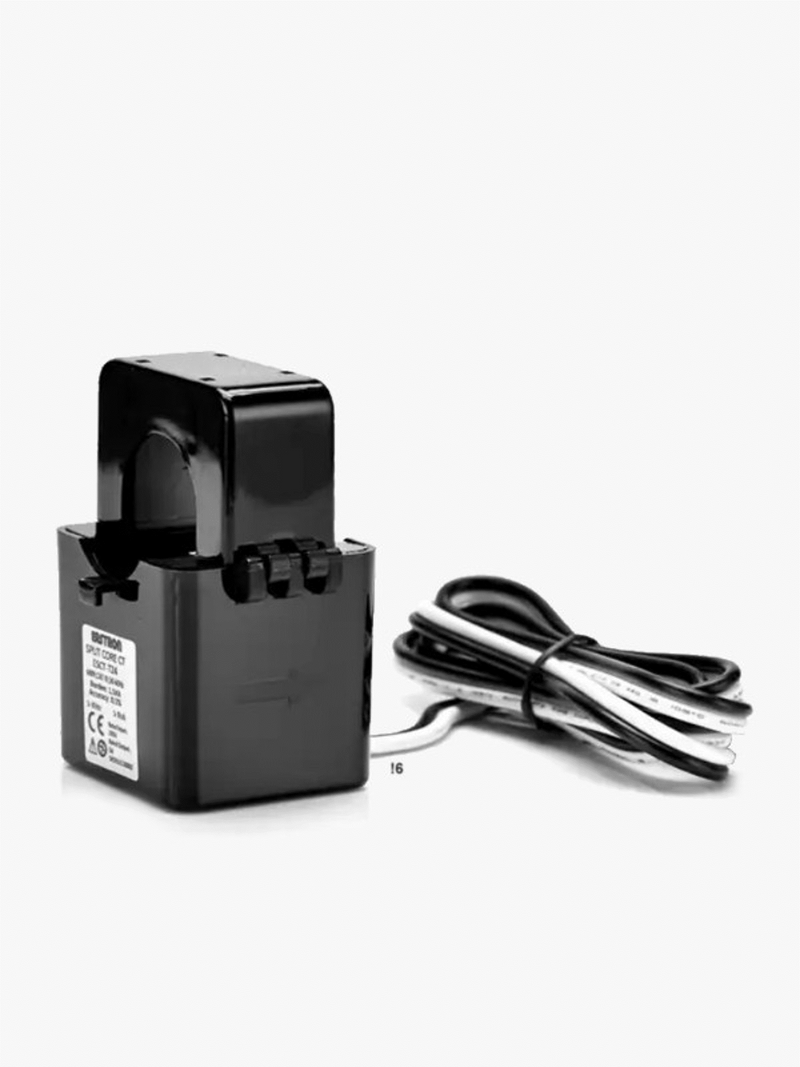

  • Split Core CT
  • Single Phase
  • 16mm Aperture

The TU16 Range of Split Core Current Transformers work in conjunction with any 333mV CT Operated Electricity Meters. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors. The output on these CTs is in millivolts, as opposed to the traditional 5A secondary, which is much safer when installing. You can use individual TU16 CTs for Single Phase applications, you can also use 3pcs of these current transformers for Three Phase applications. The Aperture on this model accommodates 16mm² Cable. The TU16 is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgears.
